35 11 000 Removing and installing mounting block for pedals

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Check the function after installation.

Remove panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

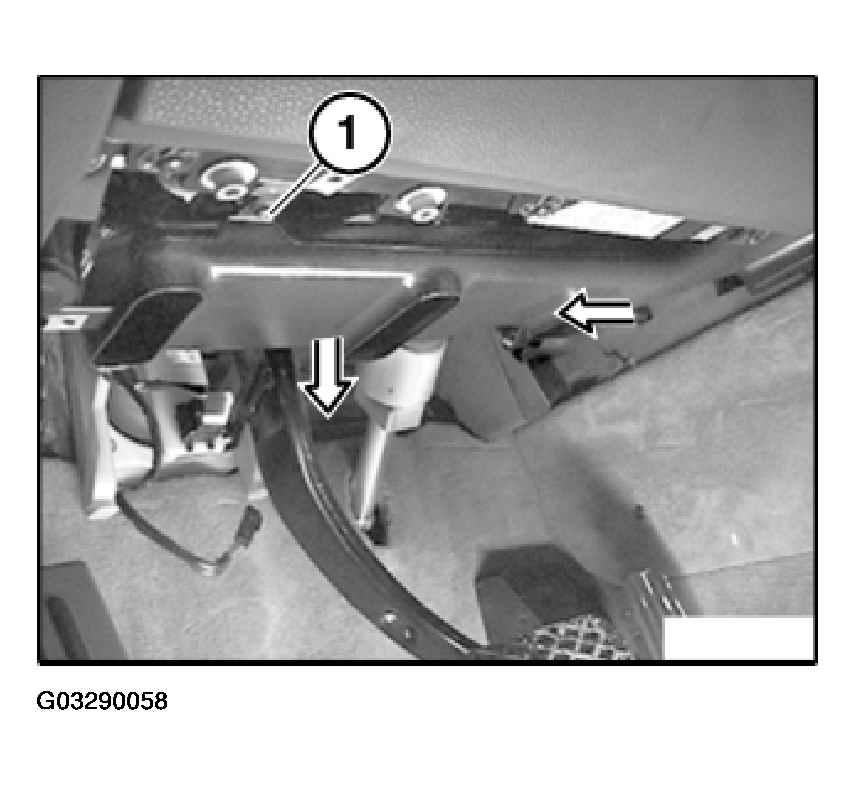

Release screw (1) on footwell air duct. First pull footwell air duct to left, then remove towards bottom front.

Fig 1: Removing Footwell Air Duct

G03290058

Courtesy of BMW OF NORTH AMERICA, INC.

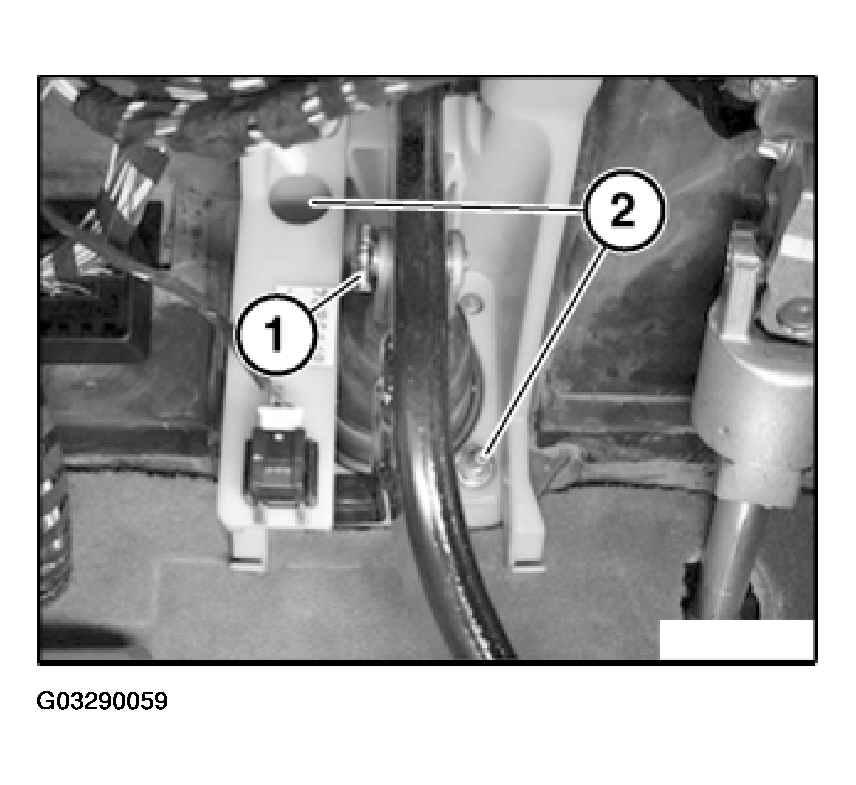

Detach retaining clip on brake pedal (1).

Fig 2: Detaching Retaining Clip On Brake Pedal

G03290059

Courtesy of BMW OF NORTH AMERICA, INC.

Withdraw pin.

Release nuts (2).

Installation:

Replace nuts (2).

Tightening torque, 35 11 1AZ. Refer to PEDALS - TIGHTENING TORQUES .

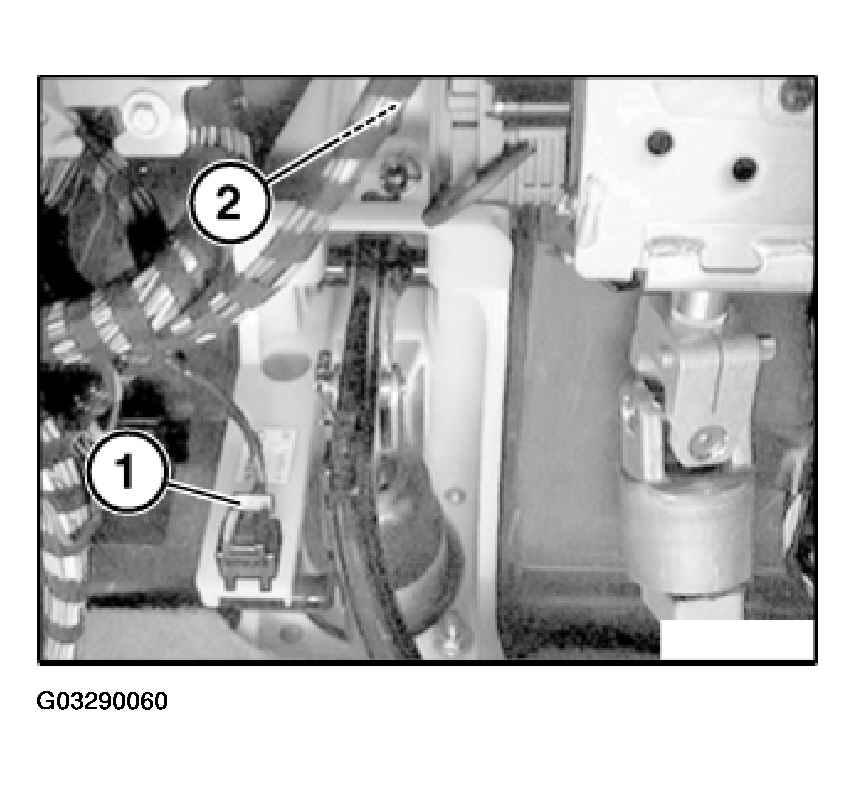

Remove brake light switch (1). Refer to 61 31 310 REPLACING BRAKE LIGHT SWITCH .

Release nut (2) for brake pedal.

Fig 3: Releasing Nut For Brake Pedal

G03290060

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace nut (2).

Tightening torque, 35 11 1AZ. Refer to PEDALS - TIGHTENING TORQUES .

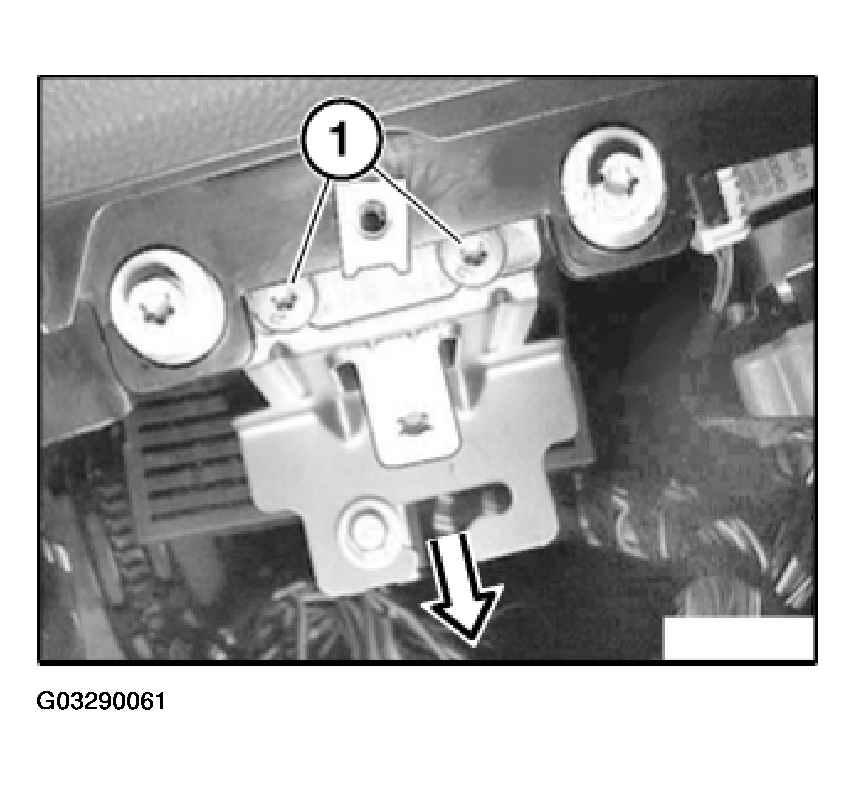

Unfasten screws (1).

Fig 4: Removing Screws

G03290061

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out light module with holder towards front.

Pull off connectors.

Remove light module.

Remove bearing bracket for pedal assembly.

Installation:

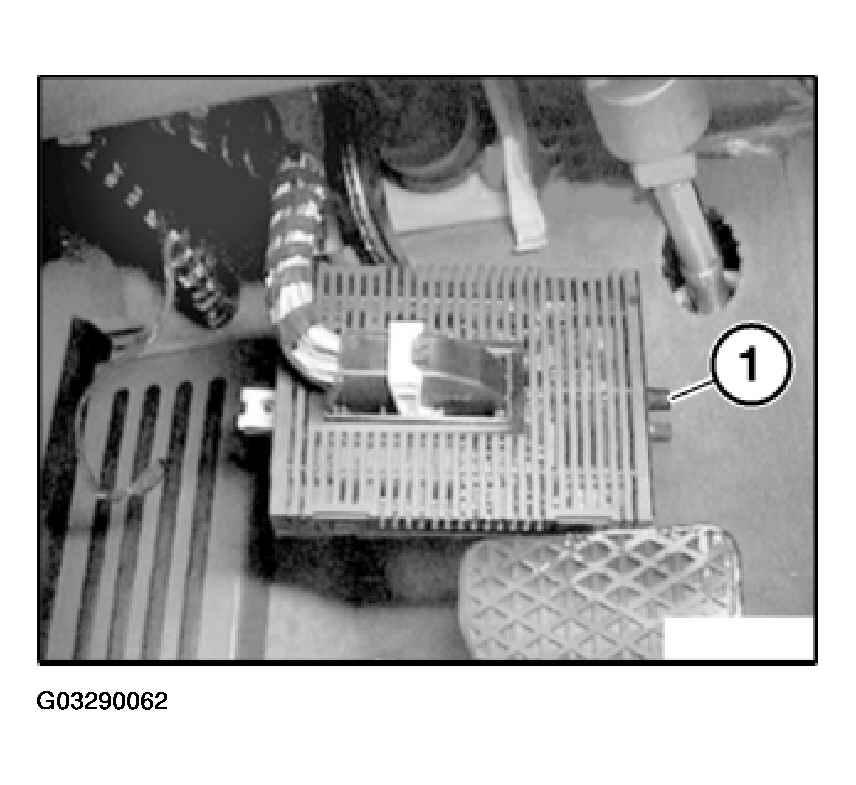

Position guide lug (1) precisely during installation to prevent damage.

Fig 5: Positioning Guide Lug

G03290062

Courtesy of BMW OF NORTH AMERICA, INC.
