51 45 185 Removing and installing/replacing trim for pedal assembly

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

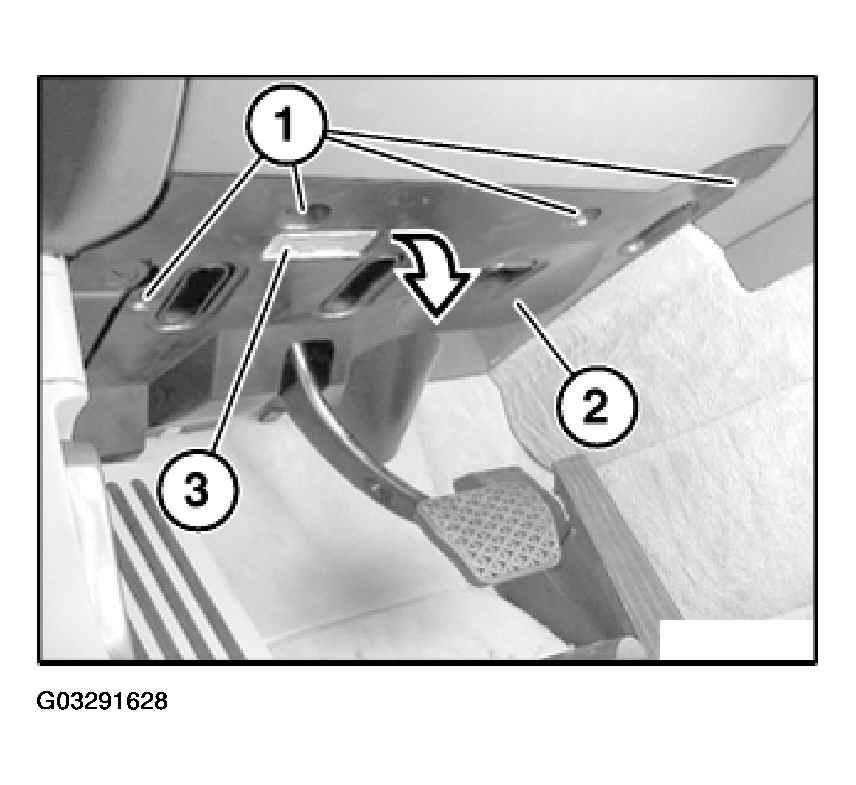

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Lower trim (2) slightly and disconnect plug connection for footwell light (3).

Remove trim (2).

Replacement only:

Lever out footwell light (3).

Installation:

Attach hook (2) to carpet lining (3).

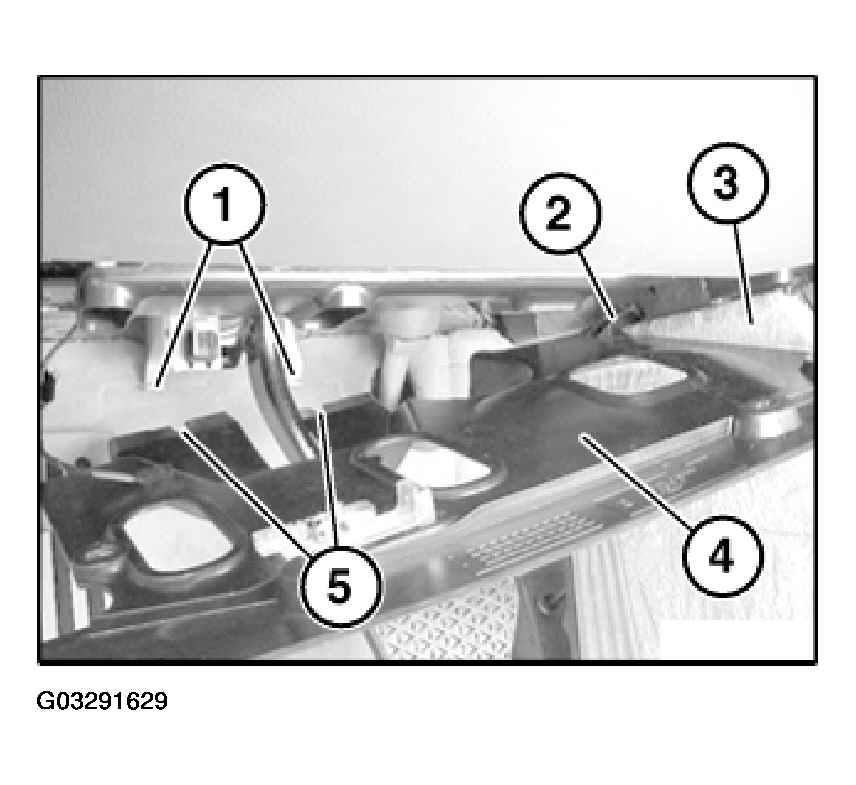

Fig 2: Installing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Slide trim (4) with guides (5) into holders (1).
