51 43 150 Removing And Installing Or Replacing Trim For Left Or Right Door Pillar (Bottom)

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove front entrance cover strip. Refer to 51 47 000 REMOVING AND INSTALLING/REPLACING ENTRANCE COVER STRIP, FRONT (INSIDE) LEFT OR RIGHT .

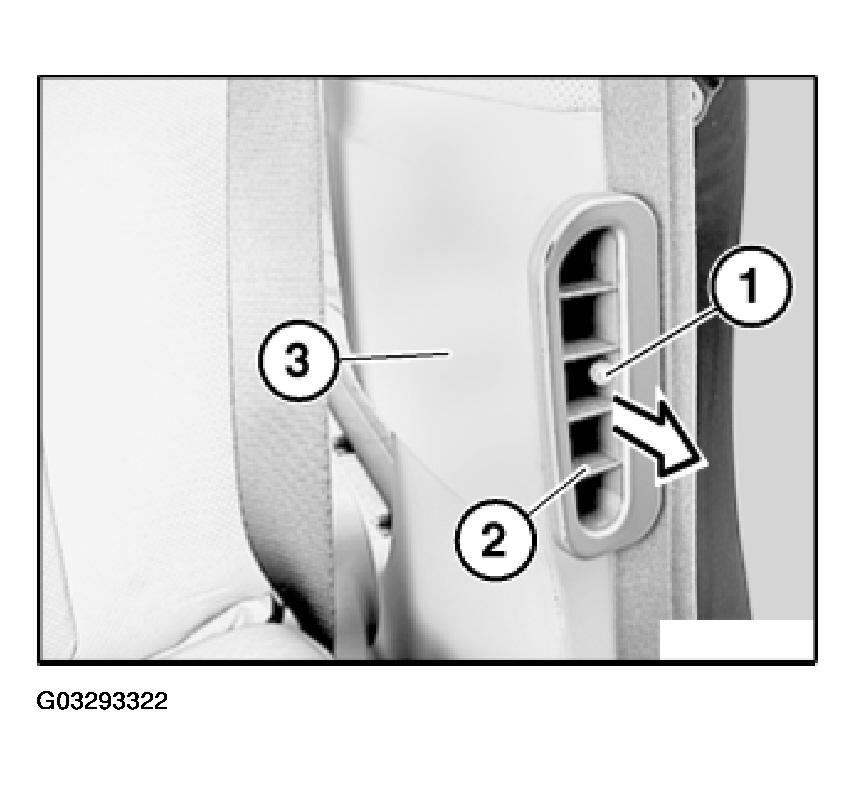

Release screw (1).

Remove nozzle (2) in direction of arrow from trim (3).

Fig 1: Removing Nozzle From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

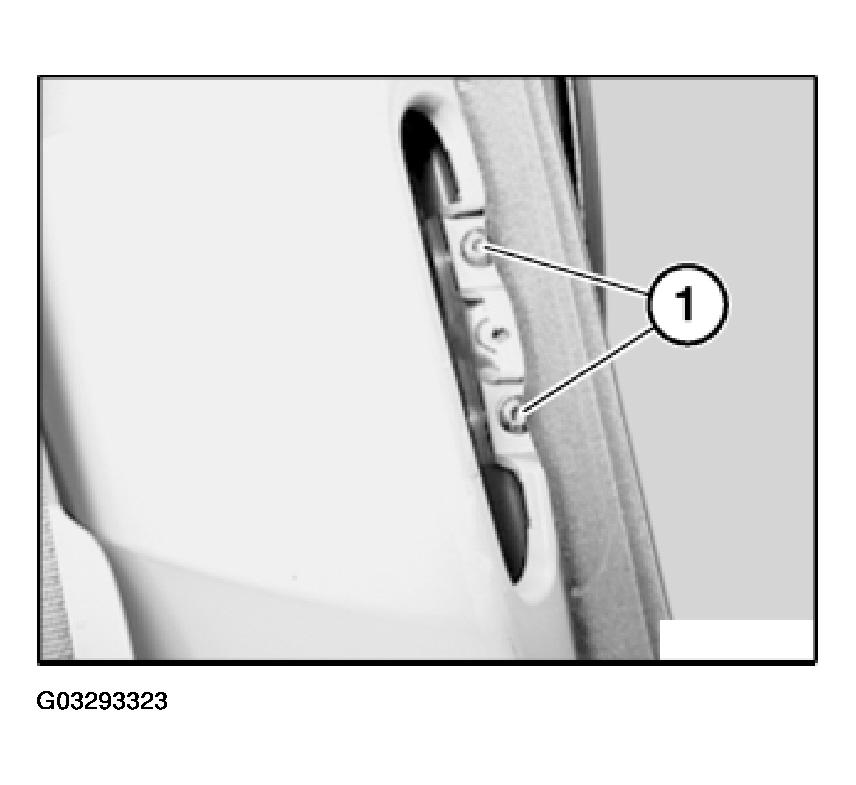

Release screws (1).

Fig 2: Locating Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

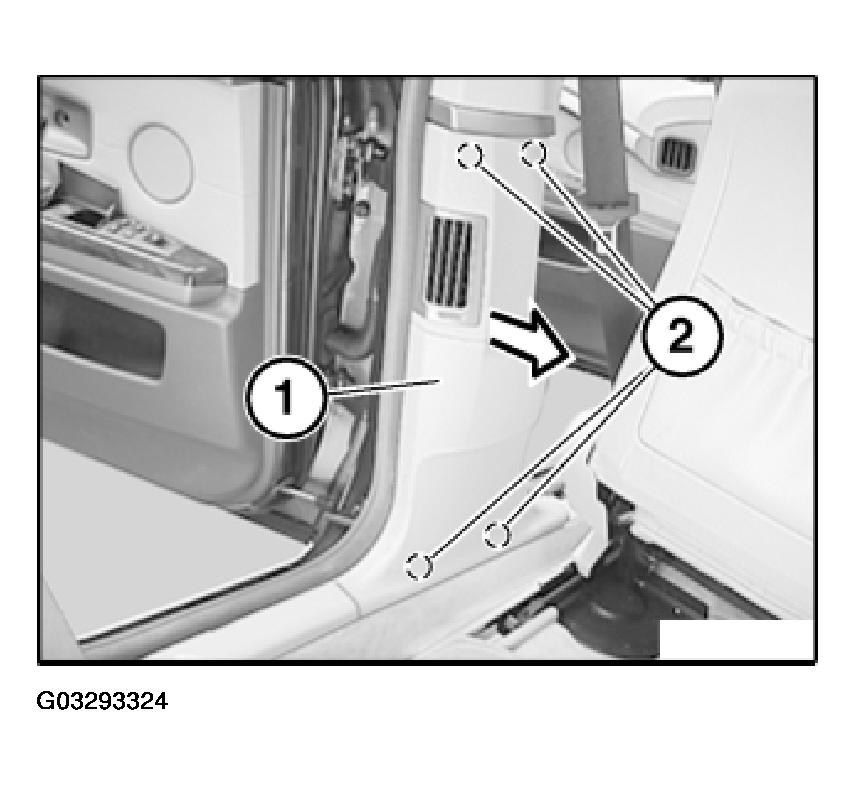

Partially detach mucket in area of B-pillar panel.

Unclip panel (1) in direction of arrow from B-pillar.

If necessary, lever clips (2) out of grommets in B-pillar.

Fig 3: Identifying Clips In Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

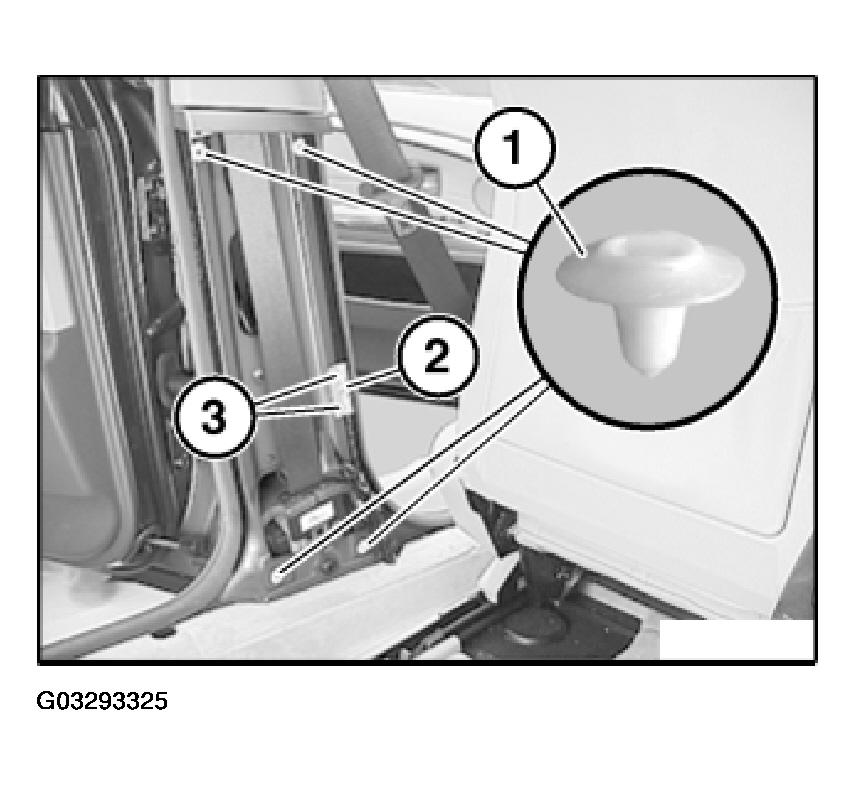

If necessary, replace defective grommets (1).

If necessary, release screws (3) and remove holder (2).

Fig 4: View Of Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

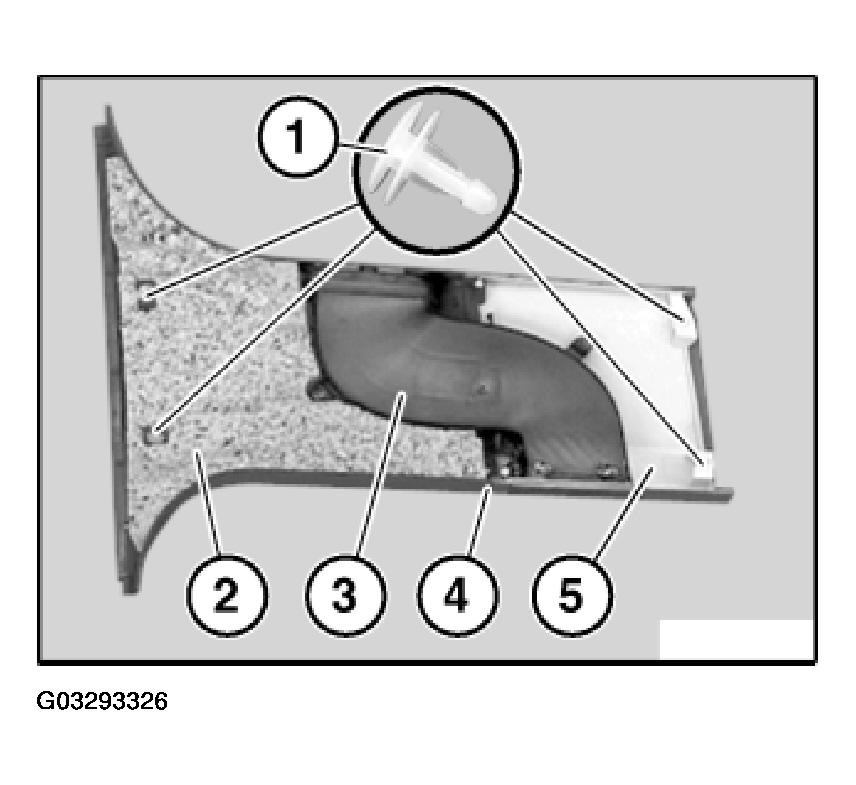

Following parts of panel for door trim (5) must not be damaged or missing:

Clips.
Sound insulation.
Air duct.
Plate.

Fig 5: Identifying Door Trim Panel Components
Courtesy of BMW OF NORTH AMERICA, INC.
