51 47 000 Removing And Installing/Replacing Entrance Cover Strip, Front (Inside) Left Or Right

WARNING: This page is about a different car, the 2005 BMW 760Li, 2004 BMW 760i, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Detach entrance cover strip (1) from front and rear trims.

Unclip entrance cover strip (1) in direction of arrow from floor plate.

If necessary, lever clips (2) with end cutting pliers (head of pliers surface-ground) out of floor pan.

Fig 1: View Of Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip mounts of entrance cover strip (2) must not be damaged.

Push clips (1) onto entrance cover strip (2).

If necessary, replace faulty clips (1).

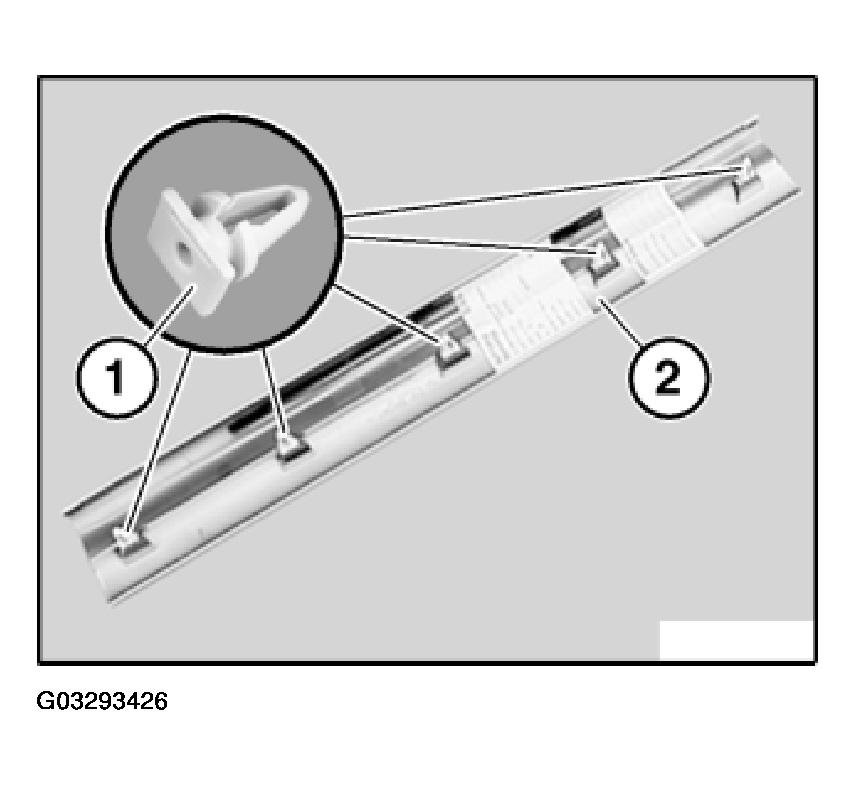

Fig 2: Identifying Entrance Cover Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
