51 23 265 Removing and installing/replacing left or right gas strut for engine bonnet/hood
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury and damage!
For the following tasks, you must take the appropriate measures to support the engine bonnet/hood.
As an alternative, you can enlist the help of a second person to hold the bonnet/hood.
Raise engine compartment lid.

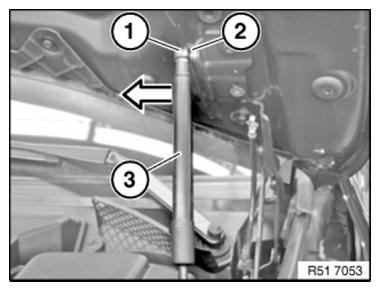

Disassemble BALL SOCKET (1) .
Unclip gas spring strut (3) in direction of arrow from ball stud (2), top and bottom.
Detach gas pressurized prop.
