51 23... Removing/installing ball sockets with clip
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2007 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of injury! When installed, the gas pressurized shock absorber is under preload. Minimize preload as far as possible before removing.
IMPORTANT:
Never lift off ball socket with engaged retainer.

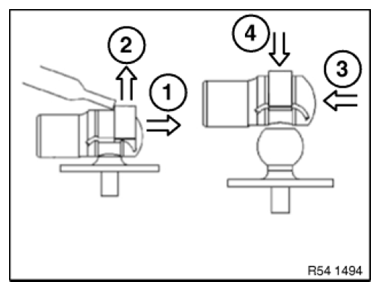

Disassembly/assembly:
- Push on retainer in direction of groove with screwdriver
- Lift off ball socket from ball pin
- Slide retainer back
- Fit ball socket on ball stud and snap into place with force
Installation:
Replace overstretched clips.
Pack grease into two opposite positions in socket. The grease spreads after installation on the ball pin all round in the ball socket.
