41 14 531 Replacing Engine Support/Front Left Side Frame Connection (Front Left Wheel Arch Removed)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Removing the engine support side frame connection

Following new body parts are required (see BMW ELECTRONIC PARTS CATALOGUE ):

(1) Connection, wheel arch/entrance

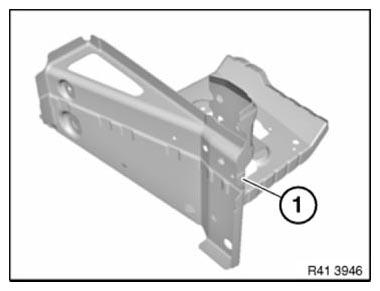

Fig 1: Identifying Engine Support/Front Left Side Frame Connection
Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

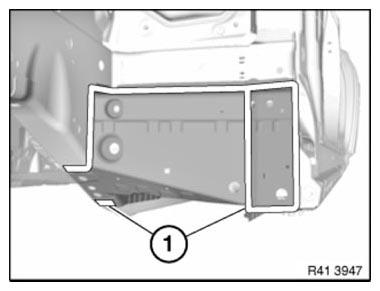

Fig 2: Identifying Welded Connections Area

G06890410

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

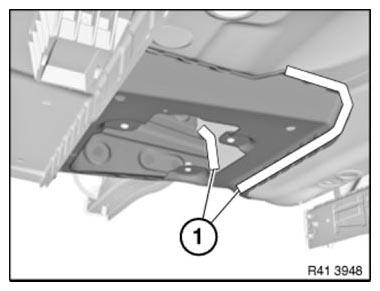

Fig 3: Identifying Welded Connections Area (View From Below)

G06890411

Courtesy of BMW OF NORTH AMERICA, INC.

View from below:

Open welded connections in areas (1).

Remove wheel arch/entrance connection.

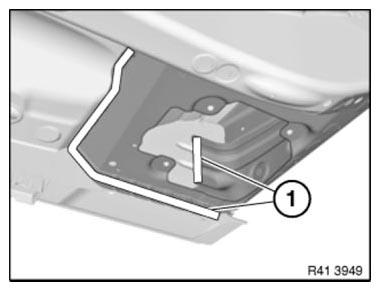

Fig 4: Identifying Welded Connections Area

G06890412

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Open welded connections in area (1).

Remove metal section (2).

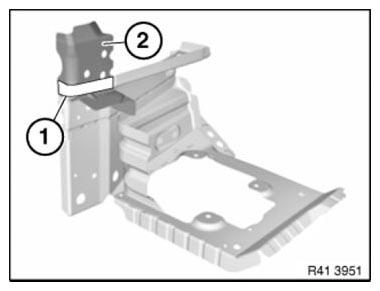

Fig 5: Identifying Welded Connections Area And Metal Section

G06890413

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the engine support side frame connection

Install and weld new parts.

NOTE: The bulkhead cross member (1) is filled with low-flammable cavity foam.
In case of smoke formation, stop the welding procedure and cool the welded area with compressed air if applicable.

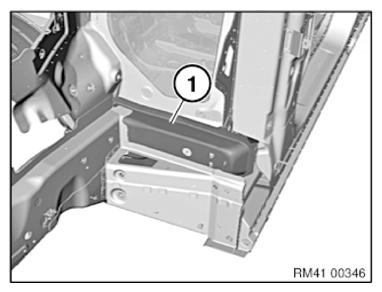

Fig 6: Identifying Bulkhead Cross Member

G09878537

Courtesy of BMW OF NORTH AMERICA, INC.
