51 12 070 Replace the center spoiler on rear bumper panel

Necessary preliminary tasks:

• Remove rear bumper trim. See REMOVING REAR BUMPER PANEL (UNTIL PRODUCTION DATE 08/2010)  or REMOVING REAR BUMPER PANEL (FROM PRODUCTION DATE 08/2010) .

Release catches (1) and remove spoiler (2).

Installation note:

Catches (1) on spoiler and bumper panel must not be damaged.

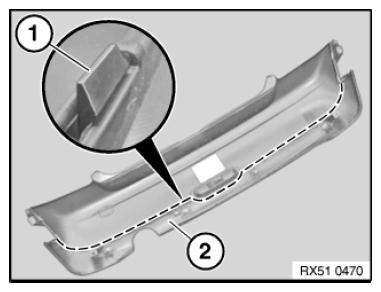

Fig 1: Identifying Catches On Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

Version with PDC:

Modify all ultrasonic sensors.

Expand latch mechanisms (1) and remove ultrasonic sensor (2) in direction of arrow.

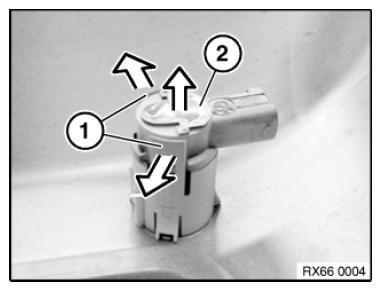

Fig 2: Removing Ultrasonic Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
