63 99 315 Replacing light bulb(s) for left or right rear light

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Build date up to 08/2010

Turn socket housing (1-3) and pull out from rear light.

  1. Socket housing for rear light/brake light
  2. Socket housing for turn indicator
  3. Socket housing for reversing light
Fig 1: Identifying Rear Light Socket Housings
G04798103Courtesy of BMW OF NORTH AMERICA, INC.

Build date from 08/2010

Turn socket housing (1-3) and pull out from rear light.

  1. Socket housing for rear light
  2. Socket housing for brake light
  3. Socket housing for turn indicator

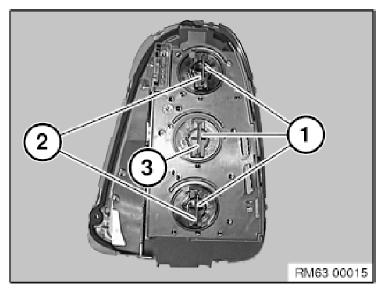

Fig 2: Identifying Socket Housings For Rear Light, Brake Light And Turn Indicator
G10996809Courtesy of BMW OF NORTH AMERICA, INC.

Turn bulb (1) in direction of arrow and remove from socket housing (2).

Installation note:

Note BULB TYPE .

Fig 3: Removing Rear Light Bulb From Socket Housing
G04798142Courtesy of BMW OF NORTH AMERICA, INC.
