51 24 065 Removing and installing/replacing Bowden cable for manual tailgate unlocking

Necessary preliminary tasks:

• Remove side trim panel at rear right. See REMOVING REAR SIDE TRIM PANEL  or REMOVING REAR SIDE TRIM PANEL (JCWGP) .
• Detach BOWDEN CABLE FOR MANUAL UNLOCKING OF REAR LID LOCK

Remove Bowden cable for manual unlocking of the tailgate:

Feed Bowden cable (2) out of cable clips (3 and 4).

Unclip Bowden cable (2) from cable eye (1).

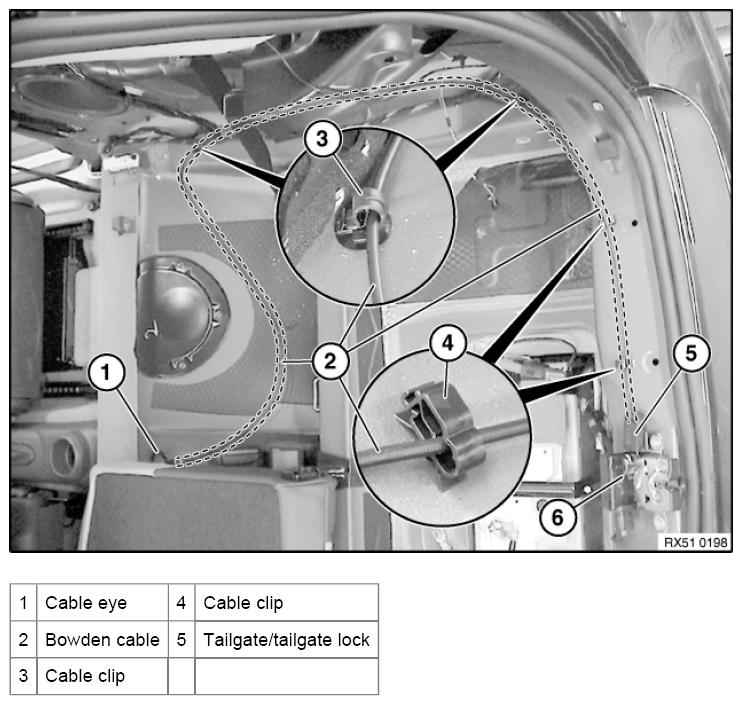

Fig 1: Identifying Bowden Cable, Clips, And Cable Eye

Courtesy of BMW OF NORTH AMERICA, INC.

Remove and feed grommet (3) out of holder (4).

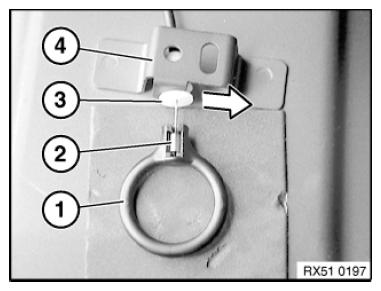

Fig 2: Feeding Grommet Out Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.
