51 12 825 Removing and installing/replacing guide for rear center bumper

Necessary preliminary tasks:

• Remove rear bumper trim. See REMOVING REAR BUMPER PANEL (UNTIL PRODUCTION DATE 08/2010)  or REMOVING REAR BUMPER PANEL (FROM PRODUCTION DATE 08/2010) .

Feed guide (1) out of holder (2).

Release screw (3) and remove holder (2).

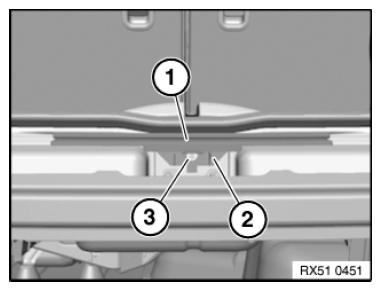

Fig 1: Identifying Holder, Guide And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
