12 61 280 Removing and installing/replacing oil pressure sensor (N18)
Special tools required:
WARNING:
Risk of burning!
Only perform this repair work on an engine that has cooled down.
Only perform this repair work on an engine that has cooled down.
Necessary preliminary work:
- Switch off ignition.
- Remove FAN COWL .
Installation location:
The oil pressure sensor is located in the oil filter housing.
Engine oil may emerge when oil pressure sensor is replaced; have a cleaning cloth ready.

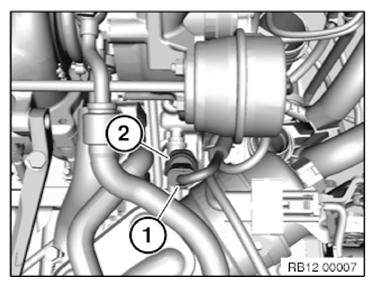

Unlock connector (1) and remove.
Release the oil pressure sensor (2) with special tool 11 7 020 .
Installation note:
- Replace sealing ring.
- Tightening torque 12 61 1AZ .
- Check engine oil level, top up engine oil if necessary.
Assemble engine.
