17 11 035 Removing and installing/replacing fan cowl with electric fan (N14, N18)
WARNING:
Risk of burning!
Only perform this repair work after engine has cooled down.
Only perform this repair work after engine has cooled down.
Necessary preliminary work:
Remove left charge air duct. See 11 61 365 REPLACING LEFT CHARGE-AIR DUCT (N14) or 11 61 365 REPLACING LEFT CHARGE AIR DUCT (N18) .

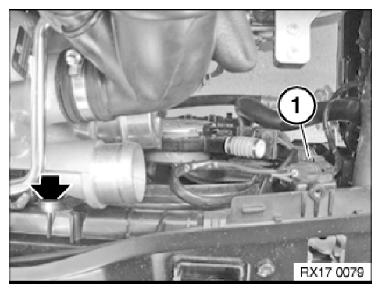

Release screw.
Unlock connector (1) and remove.
Release screw.
Unlock fan cowl (1) in direction of arrow, feed out in downward direction and remove.
