65 13 080 Removing and installing/replacing speaker (tweeter, in trim panel partition wall, left or right)

Necessary preliminary tasks:

• Remove UPPER PARTITION TRIM PANEL

Release screws (2) and feed corresponding cable from trim panel of partition wall (1).

Tightening torque 65 13 2AZ .

Remove tweeter (3) from trim panel of partition wall (1).

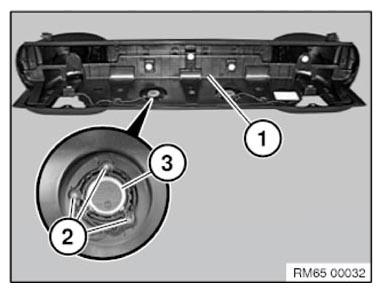

Fig 1: Removing Tweeter From Trim Panel Of Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.
