51 46 075 Remove, install/replace trim panel at the top partition wall

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

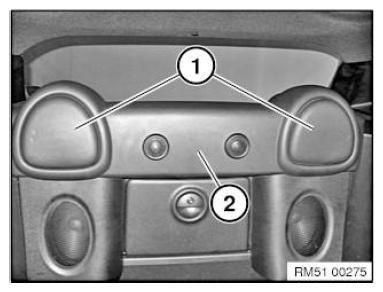

Unclip cover (1) from trim panel (2).

Fig 1: Identifying Cover And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

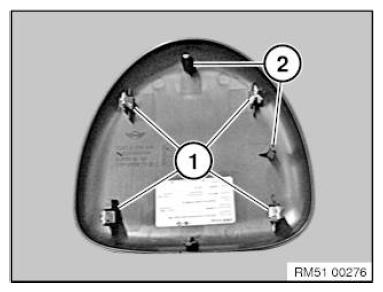

Installation note:

Clamps (1) and guides (2) must not be damaged.

If necessary, replace faulty clamps (1).

Fig 2: Identifying Clamps And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

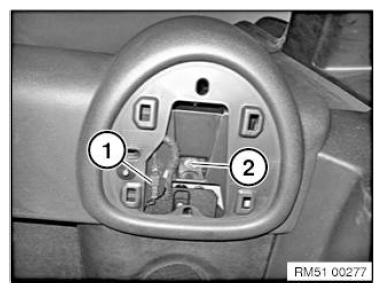

Unlock and disconnect plug connection (1) on the left and right.

Release screw (2) on left/right.

Fig 3: Identifying Plug Connection And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

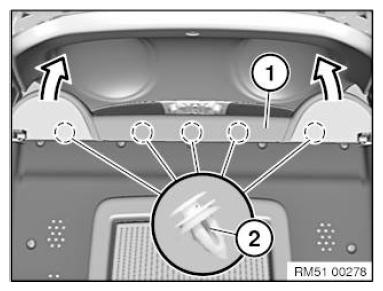

Loosen the trim panel (1) at the clips (2) and remove trim panel (1) in the direction of the arrow.

NOTE: Remove trim panel (1) through door aperture on the front passenger side.

Fig 4: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

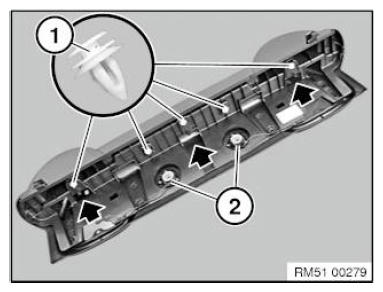

Clips (1) and guides must not be damaged.

If necessary, replace faulty clips (1).

Replacement (depending on version):

Remove TWEETER (2)

Fig 5: Identifying Tweeter And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
