51 43 002 Removing and installing/replacing rear left or right side trim panel

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Unclamp cover (1) and remove.

Release screw (2) on end fitting.

Tightening torque 72 11 04AZ .

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on seat belt deflection.

Tightening torque 72 11 03AZ .

Fig 2: Identifying Seat Belt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and guide cover (2) over seat belt (3).

Tightening torque 72 11 17AZ .

Fig 3: Releasing Screws And Guide Cover Over Seat Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Release latch mechanisms (1) and feed out cover (2) from seat belt (3).

Fig 4: Removing Cover From Seat Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on side trim panel (1).

Tightening torque 51 43 04AZ .

Release side trim panel (1) at clamps (3).

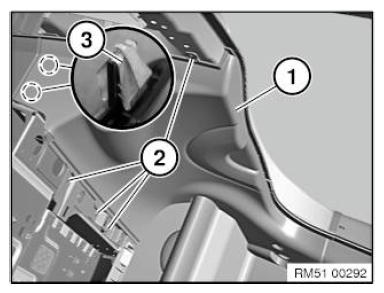

Fig 5: Identifying Side Trim Panel, Screws And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expanding rivet (1).

Release side trim panel (2) at clips (3).

Remove side trim panel (2) toward the inside and feed out seat belt.

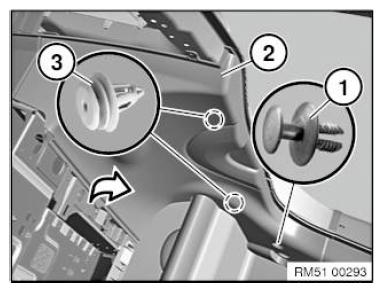

Fig 6: Releasing Side Trim Panel At Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Following parts of side trim panel (1) must not be damaged or missing:

(2) Clamps

(3) Guides

(4) Clips

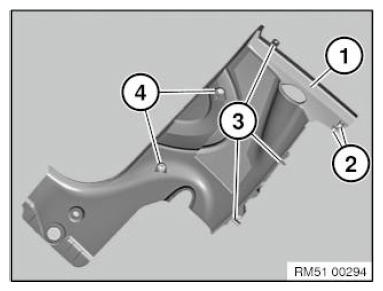

Fig 7: Identifying Side Trim Panel, Clamps, Guides And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
