51 46 073 Remove, install/replace bottom left or right partition wall trim panel
WARNING: This page is about a different variant/trim than selected.
Special tools required:
Necessary preliminary tasks:
R58 only:
- Remove UPPER PARTITION TRIM PANEL
R59 only:
- Remove cover on partition wall at top

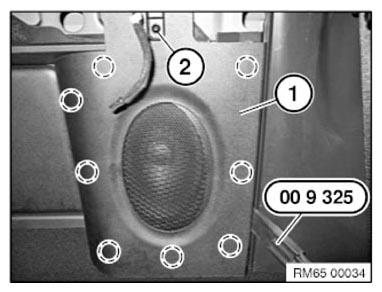

Release screw (2).

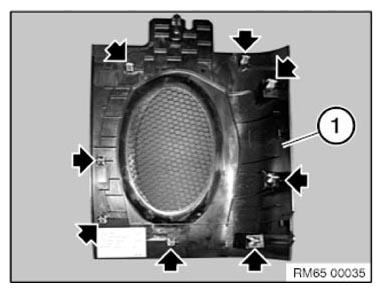

Unclip cover (1) using special tools 00 9 325 at the marked points.
Remove cover (1).
Installation note:
Follow the installation sequence exactly to avoid noise generation!
- First, tighten screw (2)
Right side:
- Starting at the top, clip in latch mechanisms in a clockwise direction
Left side:
- Starting at the top, clip in latch mechanisms in an counter-clockwise direction
Installation note:
Clamps on cover (1) must not be deformed or damaged.
Replace defective clamps.
