51 44 150 Replacing trim for front roofliner

Necessary preliminary tasks:

• Remove both TRIMS FOR FRONT ROOF PILLAR
• Remove ROOF OPERATING FACILITY

Remove both counter supports (3) from the sun visors, by lifting up the visors (1) and loosening the screws (2).

Remove counter supports (3).

Fig 1: Identifying Trims And Counter Support Screws

Courtesy of BMW OF NORTH AMERICA, INC.

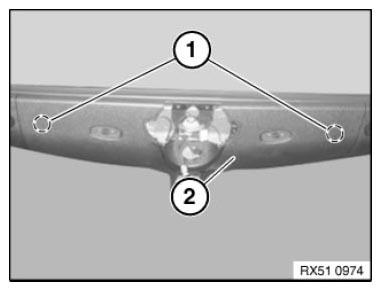

Unclip the retaining clips (1) downwards on the visor (2) and remove the visor (2).

Fig 2: Identifying Visor And Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (1) on the visor (2) must not be damaged.

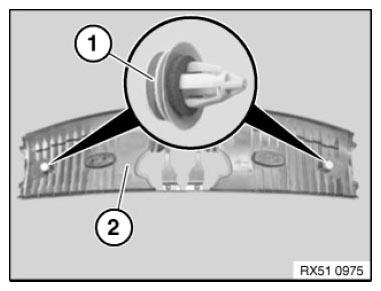

Fig 3: Locating Clips On Sun Visor

Courtesy of BMW OF NORTH AMERICA, INC.
