63 25 000 Removing and installing/replacing additional brake light

Necessary preliminary tasks:

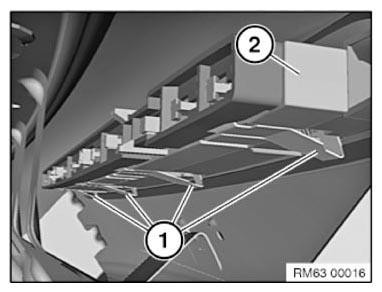

Release metal clamps (1) through pressing in direction of additional brake light (2).

Fig 1: Identifying Additional Brake Light And Metal Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

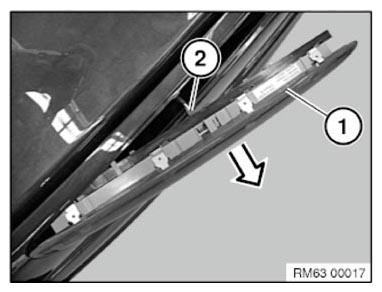

Pull out additional brake light (1) slightly in direction of arrow.

Disconnect plug connection (2) and remove additional brake light (1).

Fig 2: Removing Additional Brake Light

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

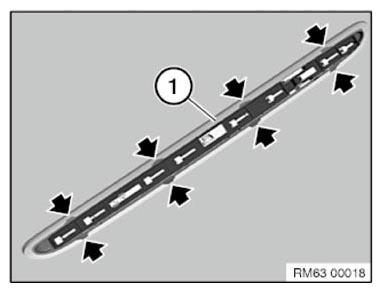

Metal clamps and sealing (1) must not be damaged or missing.

Make sure additional brake light and plug connection are correctly seated.

Fig 3: Locating Metal Clamps And Sealing

Courtesy of BMW OF NORTH AMERICA, INC.
