51 49 000 Removing and installing or replacing trim for rear lid

Necessary preliminary tasks:

• Remove TRIM PANEL FOR REAR STORAGE SHELF
• Remove SIDE TAILGATE TRIM PANEL  inside left and right
• Partially loosen the top of the COVER FOR THE REAR WINDOW FRAME

Release screws (1) on trim panel (2).

Release trim panel (2) at marked positions from clips (3) and remove.

Installation note:

If necessary, replace faulty clips (3).

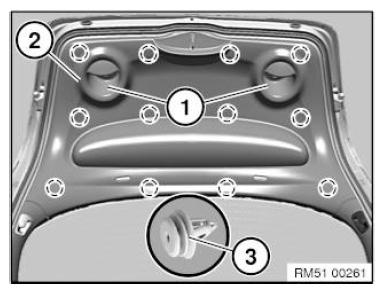

Fig 1: Identifying Trim Panel, Clips And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Guide pins (2) on trim panel (1) must not be damaged.

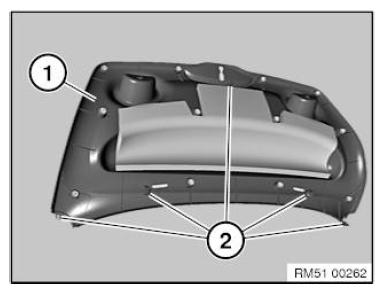

Fig 2: Locating Guide Pins On Rear Lid Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
