65 13 090 Removing and installing/replacing speaker (rear bass speaker)

Special tools required:

Necessary preliminary tasks:

Release screw (2).

Unclip cover (1) with special tool 00 9 325 at marked points.

Remove cover (1).

Fig 1: Unclipping Cover Using Special Tools (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Brackets at cover (1) may not be bent or damaged; replace if necessary.

Fig 2: Locating Cover Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque 65 13 1AZ .

Remove bass speaker (1) toward the front.

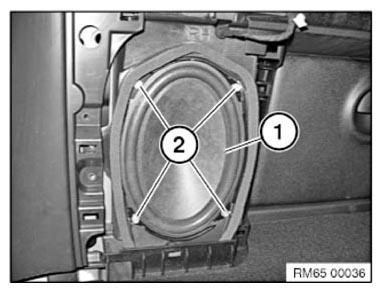

Fig 3: Locating Bass Speaker Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (2) and disconnect.

Remove bass speaker (1).

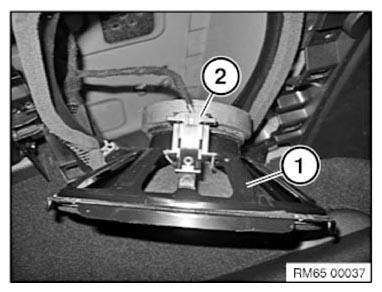

Fig 4: Identifying Bass Speaker And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
