65 77 720 Removing and installing/replacing left B-pillar sensor
WARNING:
Comply with SAFETY INFORMATION
.
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
Necessary preliminary tasks:
- Disconnect BATTERY EARTH LEAD
- Partially remove REAR LEFT SIDE TRIM PANEL

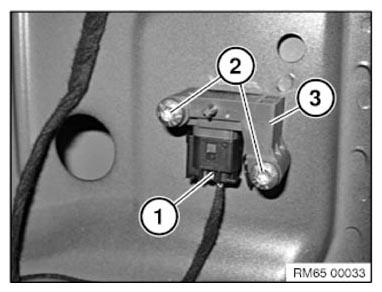

Unfasten plug connection (1) and disconnect.
Unfasten screws (2).
Tightening torque 65 77 3AZ .
Remove sensor (3).
