67 61 040 Removing and installing/replacing folding sunroof drive unit

Necessary preliminary tasks:

NOTE: Secure folding sunroof drive unit (2) against falling out.

Release screws (1).

Tightening torque 54 34 9AZ .

Detach folding sunroof drive unit (2) in downward direction.

Unfasten plug connection (3) and disconnect.

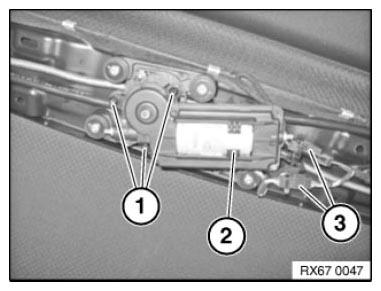

Fig 1: Identifying Folding Sunroof Drive Unit, Plug Connection, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove folding sunroof drive unit (2).

Installation note:

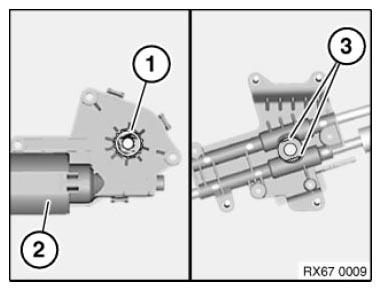

Insert gear (1) of folding sunroof drive unit (2) exactly in gearing (3).

Fig 2: Inserting Gear Of Folding Sunroof Drive Unit In Gearing

Courtesy of BMW OF NORTH AMERICA, INC.
