54 34 359 Removing and installing/replacing rear crossbar trim panel

Necessary preliminary tasks

• Open soft top half way

Release left and right screws (1).

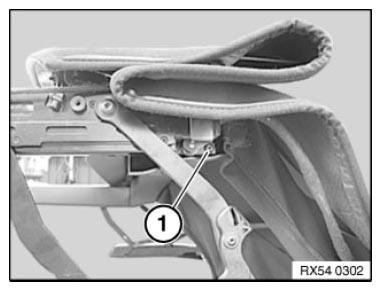

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim panel (1).

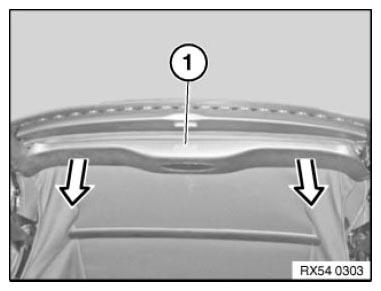

Fig 2: Unclipping Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) must not be damaged.

If necessary, retrofit felt (2) in order to avoid rattling noises.

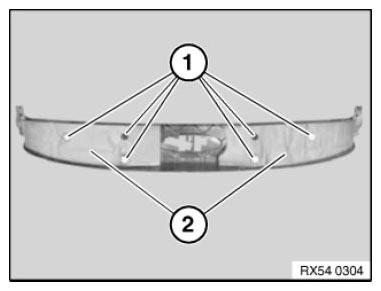

Fig 3: Identifying Felt And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
