33 17 502 Replacing rubber mount for rear axle final drive/rear axle support (rear axle final drive removed)

Special tools required:

Withdrawing rubber mount:

Use special tools 33 0 181 , 33 0 184 , 33 0 185 , 33 0 183 to pull out rubber mount in direction of travel.

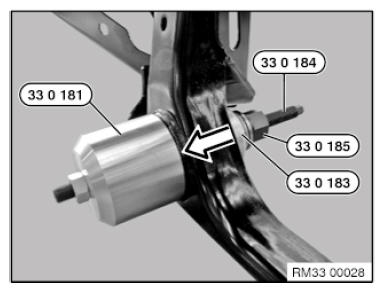

Fig 1: Pulling Out Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount:

IMPORTANT: Coat bearing bush in rear axle support and new rubber mount with Circo Light.

Using the bottom flat, align rubber mount (1) parallel with the rear axle support.

Make sure that the protrusion (16 mm) of the rubber mount points in forward direction.

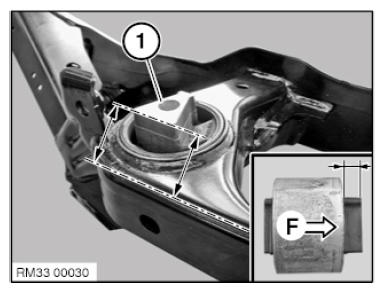

Fig 2: Aligning Rubber Mount Parallel With Rear Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.

Using special tools 33 0 184 , 33 0 185 , 33 0 183 , 33 0 182 to fit (opposite direction of travel) rubber mount sleeve (1) flush in rear axle support.

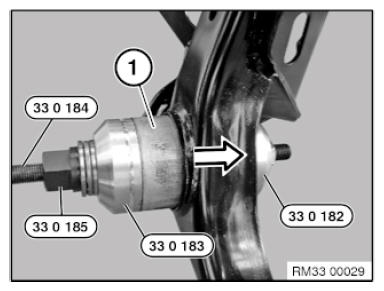

Fig 3: Fitting (Opposite Direction Of Travel) Rubber Mount Sleeve Flush In Rear Axle Support Using Special Tools
