41 31 000 Replace roof outer skin

Refer to ROOF OUTER SKIN WITH SLIDE/TILT SUNROOF  for procedure and carry over schematically to the vehicle.

STRIP DOWN  vehicle.

Installing roof outer skin

Apply sealant in areas (1) in the same way as in series standard.

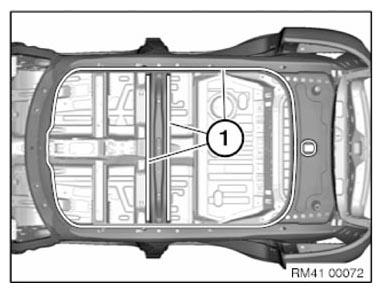

Fig 1: Identifying Sealant Application Areas
G11008158Courtesy of BMW OF NORTH AMERICA, INC.
