41 00... Gap dimensions, body

Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear door gap by more than 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Fig 1: Identifying Body Gap Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Dimensions in mm

1. Engine compartment lid
2. Front ornamental grille
3. Front bumper trim panel/turn indicator cover
4. Front wheel arch cover

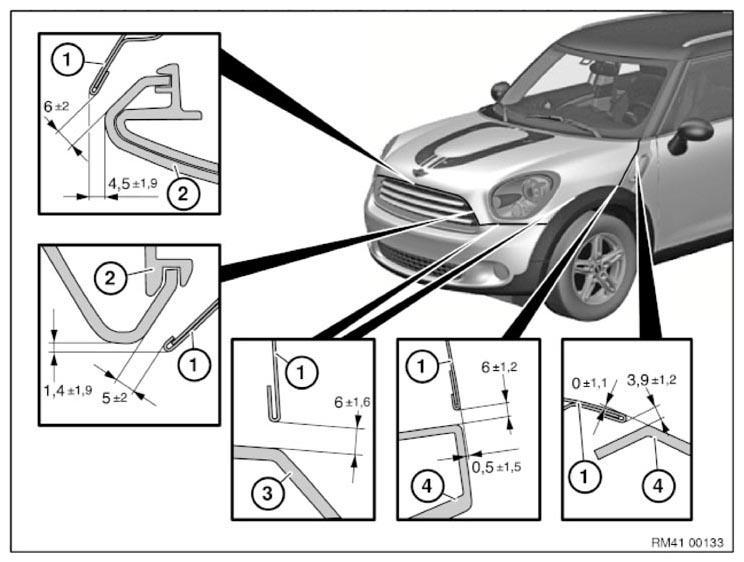

Fig 2: Identifying Engine Compartment Lid And Front Ornamental Grille Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

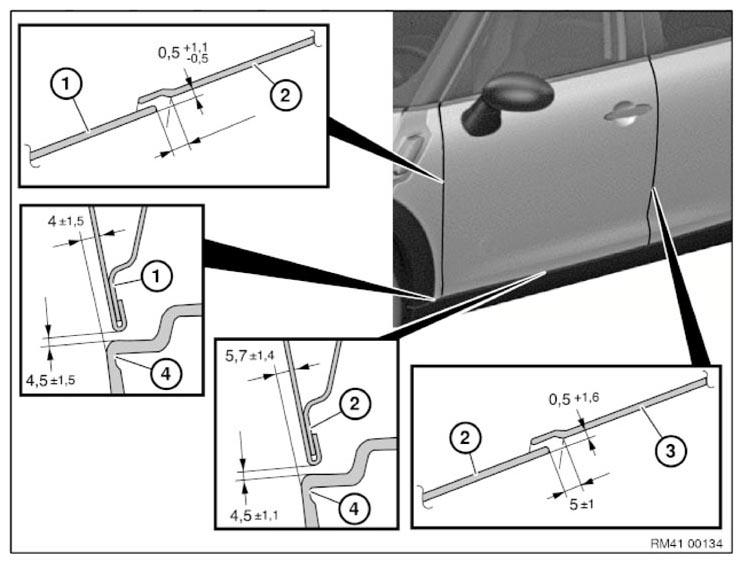

Fig 3: Identifying Front Side Panel And Rear Door Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

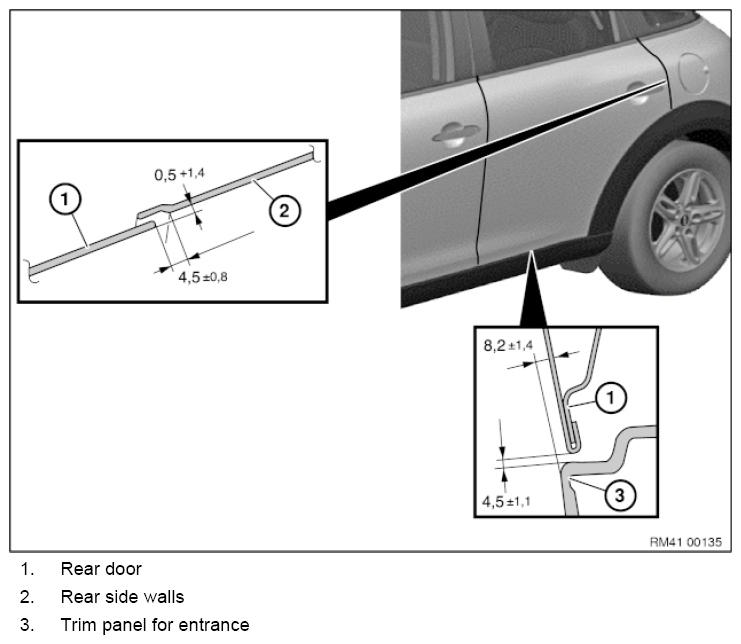

Fig 4: Identifying Rear Side Walls And Door Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

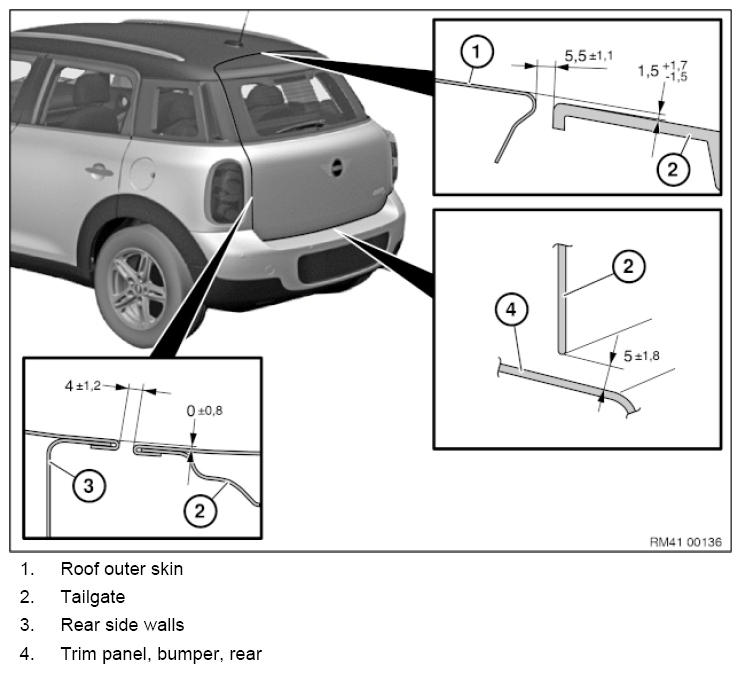

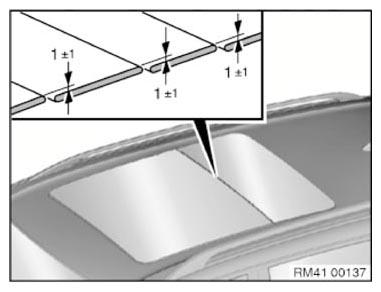

Fig 5: Identifying Roof Outer Skin And Rear Side Walls Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.
