41 00... Frame alignment control dimensions, body

Dimension in mm.

Dimension tolerances:

• ≤ 1000 mm ± 1.5 mm
• ≥ 1000 mm ± 2.5 mm

The checkpoints shown serve to check the body and the set of attachments.

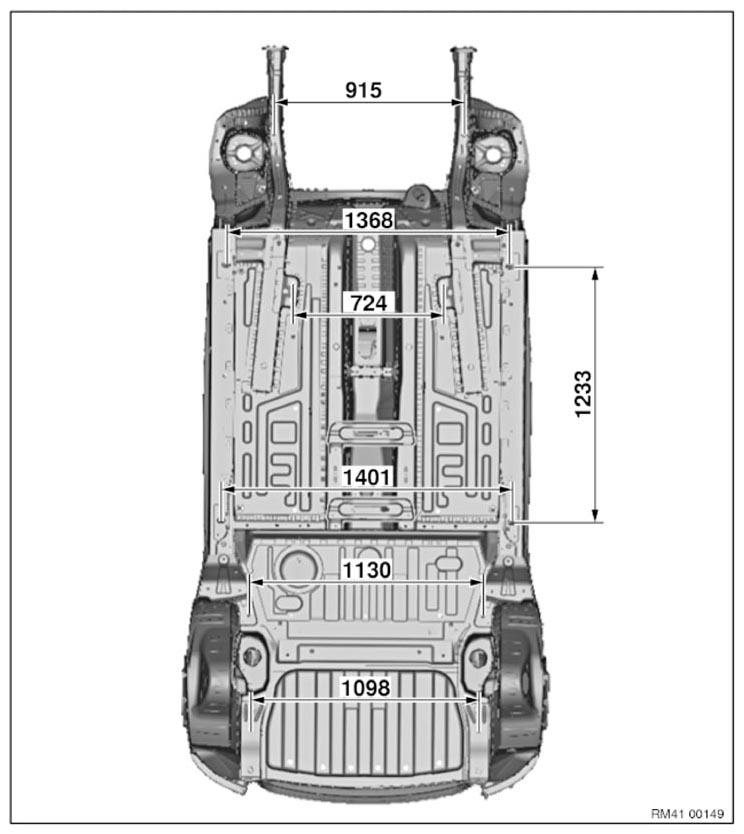

Underbody view 1

Fig 1: Identifying Body Frame Alignment Control Dimensions (Underbody View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

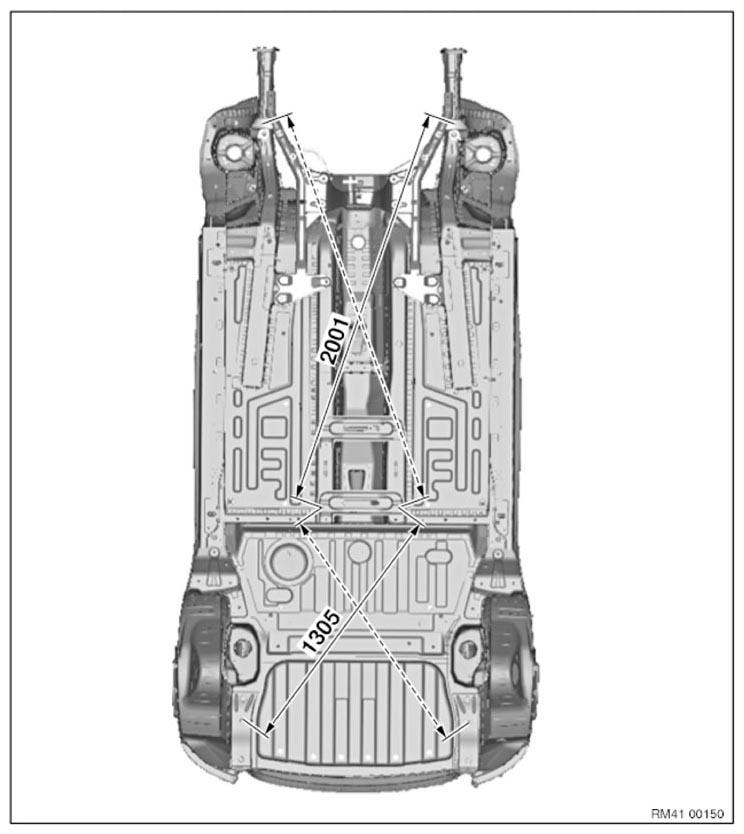

Underbody view 2

Fig 2: Identifying Body Frame Alignment Control Dimensions (Underbody View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

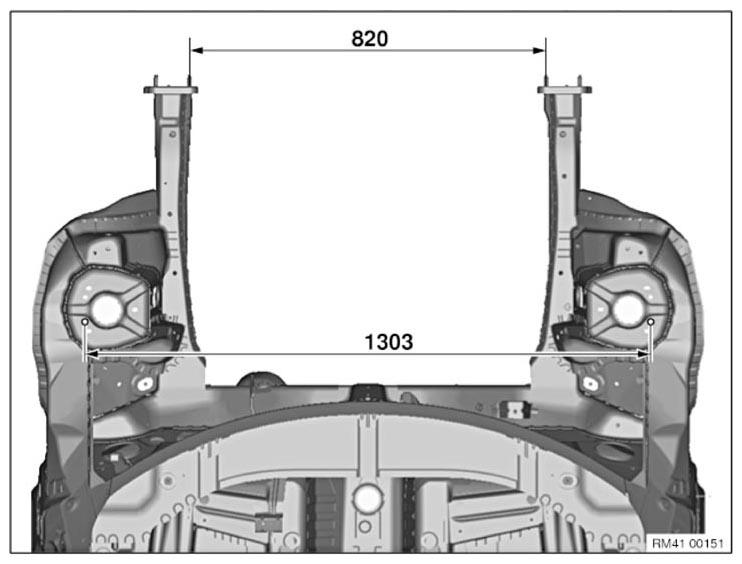

Top view, front end

Fig 3: Identifying Body Frame Alignment Control Dimensions (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.
