65 20 022 Removing and installing/replacing roof aerial

WARNING: This page is about a different car, the 2010 MINI Cooper and 2009 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT ROOFLINER TRIM
Remove ROOF AERIAL ROD

Unclip plug connections (1) from holder (2).

Unlock plug connections (1) and disconnect.

Installation:

Ensure correct routing of cables.

Release nut (3), tightening torque 65 20 1AZ .

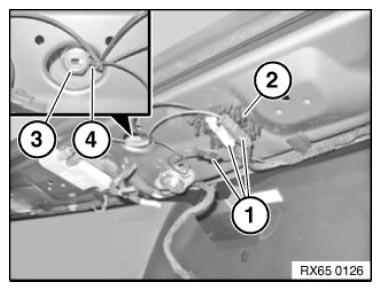

Fig 1: Identifying Plug Connections, Holder And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Leads must not be damaged.

Leads must be correctly situated in recess (4) of nut (3).

Remove roof aerial (1) in upward direction in direction of arrow.

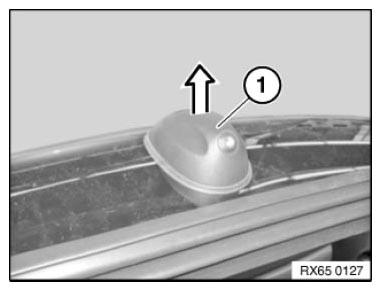

Fig 2: Removing Roof Aerial In Upward Direction

Courtesy of BMW OF NORTH AMERICA, INC.
