51 13 128 Removing and installing/replacing trim on cowl panel at top

Special tools required:

• 00 9 317

Necessary preliminary tasks:

• Remove ROOF AERIAL
• Remove FRONT COWL PANEL SEAL

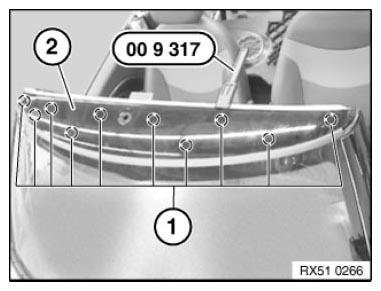

Unclip clips (1) for trim on cowl panel at top (2) with special tool 00 9 317 .

Fig 1: Unclipping Trim Clips Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

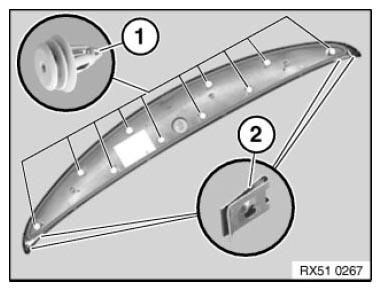

If necessary, replace faulty clips (1) and/or retainers (2) for trim on cowl panel at top.

Fig 2: Identifying Clips And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.
