51 37 000 Removing and installing complete rear left or right power window regulator

Necessary preliminary tasks:

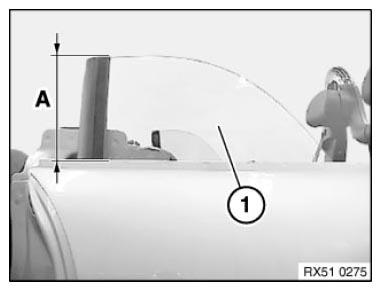

Side window (1) must be opened to dimension (A).

A = approx. 150 mm

Fig 1: Identifying Side Window Opening Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

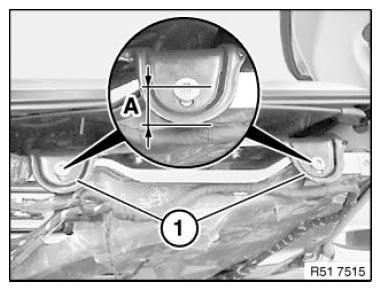

Release screws (1) and remove connecting bracket (2).

Tightening torque 51 37 4AZ.

Fig 2: Removing Connecting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

R57 only:

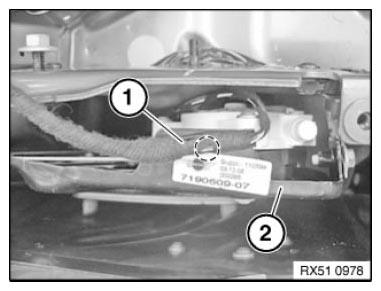

Disconnect wiring harness mounting (1) from power window regulator (2).

Fig 3: Identifying Wiring Harness Mounting And Power Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1) (do not release fully).

Tightening torque 51 37 3AZ.

Fig 4: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

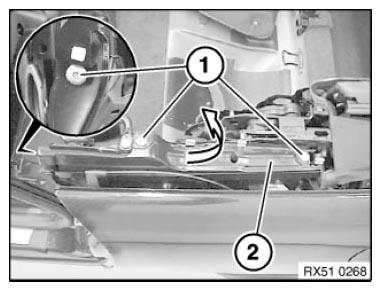

Slacken screws (1) on power window regulator (2) (do not release fully).

Tightening torque 51 37 3AZ.

Fig 5: Identifying Screws On Power Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

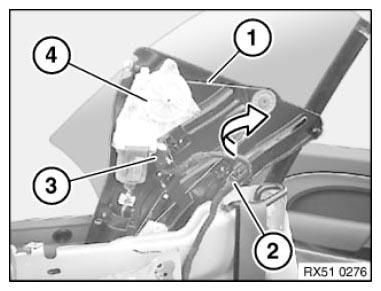

Pull out power window regulator (1) towards top slightly.

R52 only:

Lift out cable holder (2) from power window regulator (1).

Disconnect plug connection (3) on flat motor (4).

Remove power window regulator (1).

Fig 6: Removing Power Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Presettings after fitting power window regulator:

R52 only:

Preset dimension (A) at power window regulator (1) (window glass breakage); only then may the power window regulator (1) be actuated.

Distance (A) = 18.5 mm

Fig 7: Identifying Power Window Regulator Preset Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Close window completely.

Check gap dimension (A and B) between side window glass (1) and flange on side panel (2) and adjust if necessary.

Distance (A) = 16 mm

Dimension (B) = 10 mm

Fig 8: Identifying Gaps Between Side Window And Panel

Courtesy of BMW OF NORTH AMERICA, INC.

To do so, slacken screws (1) on power window regulator (2).

Tightening torque 51 37 3AZ.

Fig 9: Identifying Screws On Power Window Regulator

Courtesy of BMW OF NORTH AMERICA, INC.

Open soft top and soft top compartment lid.

Fit window cavity cover (1).

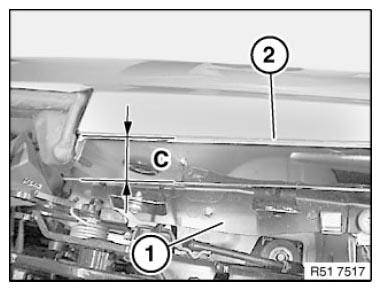

Preset dimension (C) between window cavity cover (1) and flange on side panel (2).

Dimension (C) = 24 mm

Installation:

Check function.

Adjust REAR DOOR WINDOW .

Fig 10: Identifying Dimension Between Window Cavity Cover And Flange On Side Panel
