51 43 002 Removing and installing/replacing rear left or right side trim

Necessary preliminary tasks:

Remove REAR SEAT
Remove backrest for rear seat. See BACKREST FOR LEFT REAR SEAT or BACKREST FOR RIGHT REAR SEAT .
Open convertible top

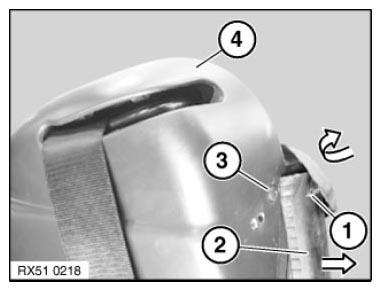

Unclip clip (1).

Detach mucket (2) in direction of arrow from side trim (4).

Release screw (3).

Fig 1: Detaching Mucket

Courtesy of BMW OF NORTH AMERICA, INC.

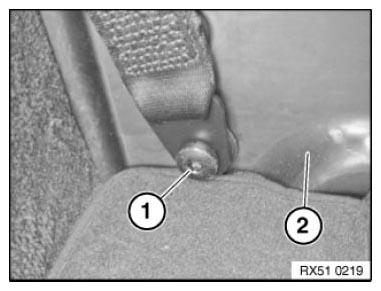

Release seat belt screw (1) on entrance cover strip (2).

Installation:

Tightening torque 72 11 4AZ .

Fig 2: Identifying Seat Belt Screw On Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

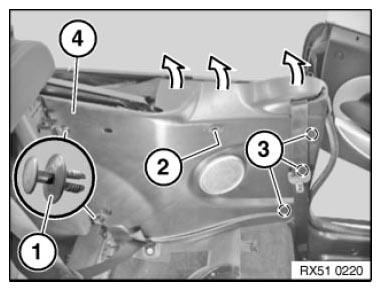

Lever out expansion rivets (1).

Release screw (2).

Unclip clips (3) and remove side trim (4) inwards and upwards.

Fig 3: Removing Side Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

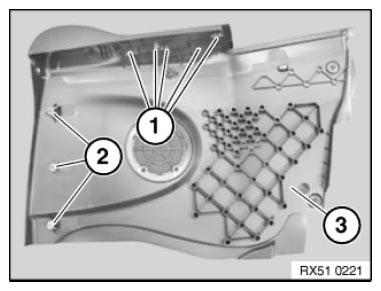

Guides (1) on side trim (3) must not be damaged.

Replacement:

If necessary, replace faulty clips (2) on side trim (3).

Fig 4: Identifying Side Trim, Clips, And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
