51 11 300 Removing and installing/replacing center cover

Special tools required:

IMPORTANT: Risk of damage!
Tape off bumper in working area with adhesive tape.

Remove cover (2) at latch mechanisms (1) in lower area using special tool 00 9 325 .

Pull cover (2) at bottom slightly forwards and manually remove upper latch mechanisms (1).

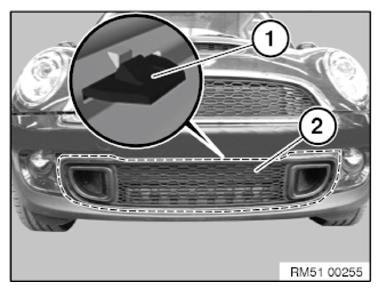

Fig 1: Identifying Center Cover And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2).

Installation note:

Latch mechanisms (1) on cover (2) must not be damaged.

First thread out the cover (2) to the side.

Replacement:
