65 77 775 Removing and installing/replacing rollover controller

Necessary preliminary tasks:

• Remove SIDE TRIM PANEL AT REAR RIGHT

Unfasten plug connection (1) and disconnect.

Unfasten screws (2).

Remove rollover controller (3).

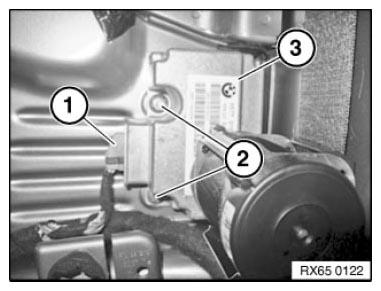

Fig 1: Identifying Rollover Controller Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
