65 11 030 Removing and installing/replacing radio receiver (built-in unit)

Necessary preliminary tasks:

• Remove cover strips for front center console

Release screws (1) and pull radio receiver back.

Remove holder (1) for radio wiring harness.

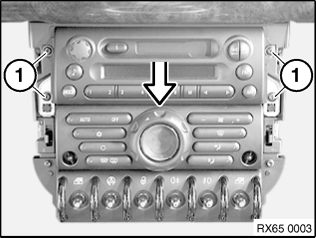

Fig 1: Radio Receiver Mounting Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (2) and disconnect.

Disconnect antenna plug (3) and remove radio receiver.

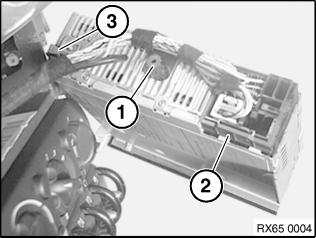

Fig 2: Radio Receiver Holder, Plug Connection And Antenna Plug

Courtesy of BMW OF NORTH AMERICA, INC.
