33 00... Rear axle: wheel/chassis alignment check must be carried out after the following work

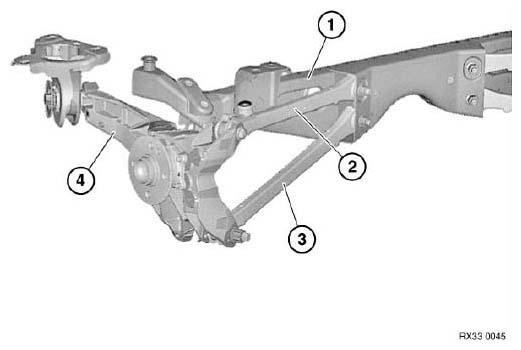

Fig 1: Identifying Rear Axle Carrier, Upper Control Arm And Lower Control Arm

Courtesy of BMW OF NORTH AMERICA, INC.

A wheel/chassis alignment check  must be carried out after the following work:

• Release of following screw/bolt connections:
  • Trailing arm bracket to body
  • Upper control arm to rear axle carrier
  • Lower control arm to rear axle carrier / trailing arm
• Replacement of following parts:
  1. Rear axle carrier
  2. Upper control arm
  3. Lower control arm
  4. Trailing arm / trailing arm bracket / rubber mount
