31 11 020 Removing and installing/replacing bumper bracket

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Undo bolt (1) at front panel strut.

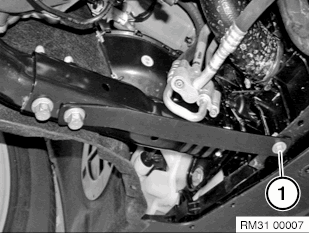

Fig 1: Identifying Bolt At Front Panel Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Pull off bumper bracket forwards from front axle support.

Installation note:

Tightening torque 31 11 3AZ

Fig 2: Removing Bumper Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
