54 13 002 Adjusting both glass slide/tilt sunroof lids

Special tools required:

• 00 9 315  . See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS -- CLUBMAN .
• 00 9 340

Necessary preliminary tasks:

• Close glass slide/tilt sunroof completely

If the glass slide/tilt sunroof is outside the adjustment tolerances, adjust as follows:

Installation:

• Microencapsulated screws (Loctite) must be replaced and may not  be reused
• Screw connection must be completed within 20 minutes (start of curing)
• Microencapsulated screws must not  be retightened
• Clean thread of nut beforehand in event of repeated use

Adjusting glass slide/tilt sunroof unit:

Carry out the following step on one side first and then the other (first left, then right or vice versa):

• Loosely screw Torx screws (1) on left/right so that glass roof panel (2) can still be moved.
• Move glass roof panel as required.
• Make sure all screws are tightened down.
• Tightening torque 54 12 4AZ .
• Repeat procedure on other side.

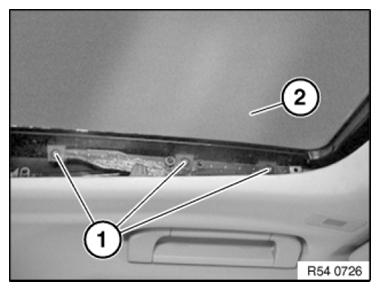

  Fig 1: Identifying Glass Slide/Tilt Sunroof Panel And Screws

  Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting front glass slide/tilt sunroof unit:

Carry out the following step on one side first and then the other (first left, then right or vice versa):

Loosely screw Torx screws (1) on left/right so that glass roof panel (2) can still be moved.

Move glass roof panel (2) as required

Make sure all screws are tightened down.

Tightening torque 54 12 4AZ .

Repeat procedure on other side.

Distance setting:

Check same gap of glass lid and body with special tool 00 9 340  .

Slide special tool 00 9 340  or similar between seal and insert. It must be possible to slide the card against the same level of resistance.

Slide glass lid towards front or rear until ideal position is reached.

Height adjustment:

Check height of glass lid (1) in relation to body (2) with special tool 00 9 315  .

Press glass lid (1) at front and rear towards top or bottom until ideal position is reached.

Height:

• Front edge of glass lid at front 0-1 mm under roof edge
  Fig 4: Checking Glass Lid Height

  Courtesy of BMW OF NORTH AMERICA, INC.
• Rear edge of glass lid at front 0 to 0.5 mm over glass lid at rear
• Rear edge of glass lid at rear 0 to 1 mm over roof edge

Check function and adjustment.
