51 34 195 Removing and installing/replacing door window glass in clubdoor

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

IMPORTANT: Secure door window glass (3) against falling out.

Release nuts (1 and 2).

Tightening torque 51 34 1AZ

Feed out door window glass (3) towards rear and remove.

Fig 1: Identifying Door Window Glass With Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal (1) is correctly seated on clubdoor.

Sealing surface must be clean and free of grease.

Replace damaged seal.

Fig 2: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.

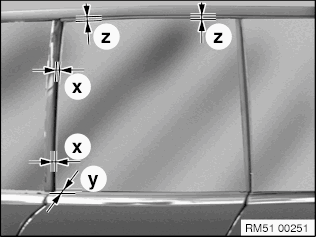

Gap dimensions	Distance / Protrusion
x	Distance door window to side window (rear)
y	Protrusion door window to side window (rear)
z	Distance door window to lower roof edge

NOTE: For gap dimensions x , y , and z , refer to GAP DIMENSIONS, BODY .

Fig 3: Identifying Door Window Gap Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

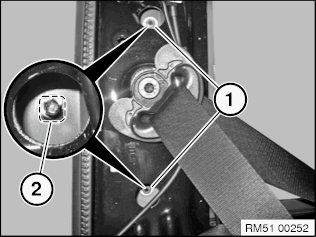

Slightly loosen nuts (1).

Tightening torque 51 34 1AZ

Adjust gap dimensions x and z of door window by sliding in the recess (2).

Fig 4: Adjusting Gap Dimensions "X" And "Z" Of Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not perform this operation until the gap dimensions x and z have been adjusted correctly.

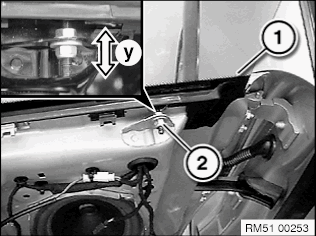

Loosen and adjust nuts (2) until the protrusion y on the door window (1) has been adjusted correctly.

Tightening torque 51 34 1AZ

Fig 5: Adjusting Dimension "Y" On Door Window

Courtesy of BMW OF NORTH AMERICA, INC.
