41 00... Gap dimensions, body

WARNING: This page is about a different variant/trim than selected.
NOTE: The dimensions specified in this service information are applicable at an object temperature of 20°C. The aim of adjustment is to achieve a uniform gap.
Symmetry of the gaps between left and right sides of the vehicle has top priority.
The door gaps must not deviate between the front and rear gap by more than 1.0 mm.
No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

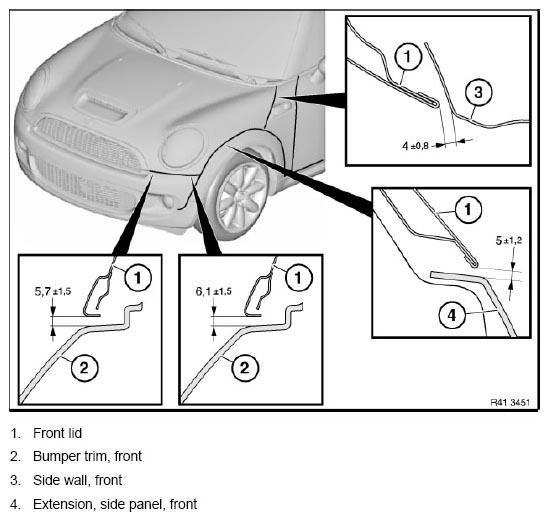

Fig 1: Identifying Body Gap Dimensions (1 Of 5)
G05516537Courtesy of BMW OF NORTH AMERICA, INC.

Dimensions in mm

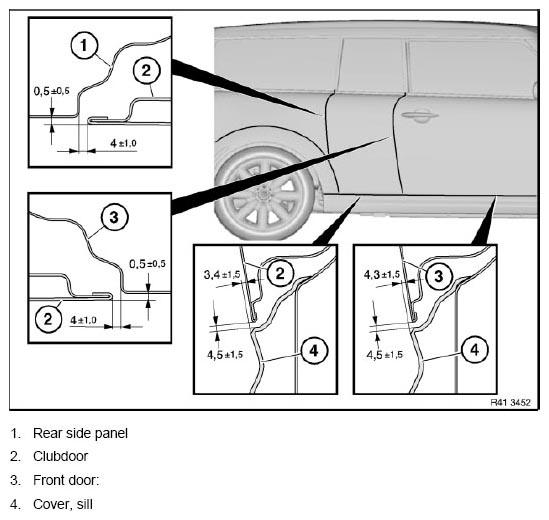

Fig 2: Identifying Body Gap Dimensions (2 Of 5)
G05516538Courtesy of BMW OF NORTH AMERICA, INC.

Dimensions in mm

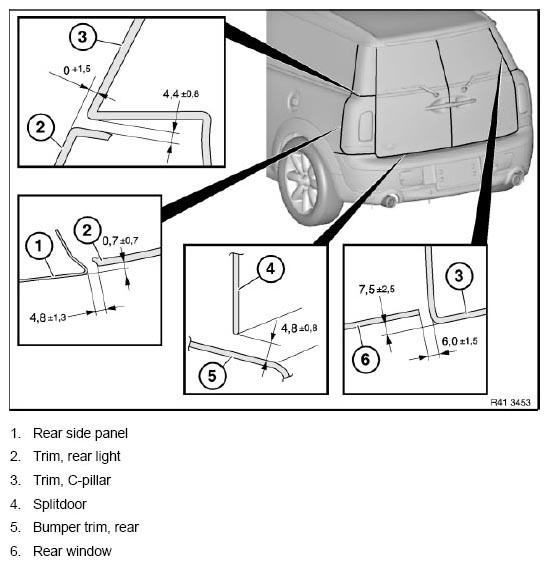

Fig 3: Identifying Body Gap Dimensions (3 Of 5)
G05516539Courtesy of BMW OF NORTH AMERICA, INC.

Dimensions in mm

Fig 4: Identifying Body Gap Dimensions (4 Of 5)
G05516540Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Identifying Body Gap Dimensions (5 Of 5)
G05516541Courtesy of BMW OF NORTH AMERICA, INC.
