66 20 508 Removing and installing (replacing) control unit (Park Distance Control): Notes

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: For purposes of clarity, graphic cutout (1) shows luggage compartment side trim panel removed.

Disconnect plug connections (2).

Release nuts (3) and remove control unit.

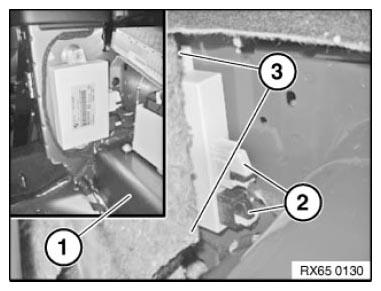

Fig 1: Identifying Luggage Compartment Side, Plug Connections And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
