72 11 092 Removing and installing/replacing left or right seat belt in rear cabin

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Installation note:

Powerlok screws (Duo Taptite) must be replaced and must not be reused
Powerlok screws (Duo Taptite) are mechanical thread fasteners with trilobular threads

Release screw (1).

Tightening torque 72 11 7AZ .

Remove anchor fitting (2) with seat belt.

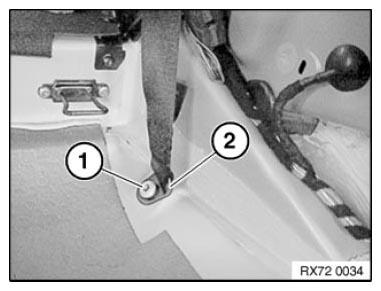

Fig 1: Identifying Anchor Fitting With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 52 26 04AZ .

Remove striker (2).

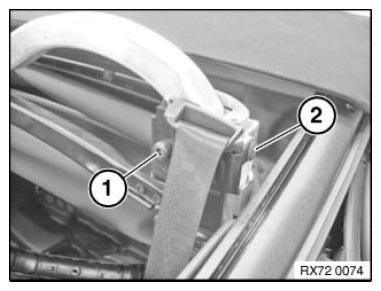

Fig 2: Identifying Striker And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 11 13AZ .

Release screw (2).

Tightening torque 72 11 14AZ .

Remove deflection fitting.

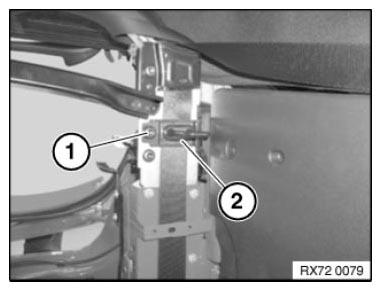

Fig 3: Identifying Deflection Fitting With Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 72 11 5AZ .

Remove automatic reel (2).

Installation:

Automatic reel (2) is encoded against incorrect installation.

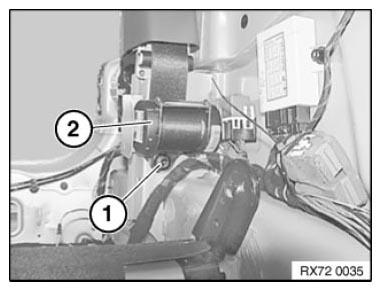

Fig 4: Identifying Automatic Reel With Screw

Courtesy of BMW OF NORTH AMERICA, INC.
