51 43 310 Removing and installing belt outlet trim

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove PANEL FOR REAR WINDOW SHELF
Reposition rear seat back

Partially remove luggage compartment wheel arch panel; to do so, open expanding rivets (3) and feed out trim panel around post from rollover protection.

Installation:

If necessary, replace faulty expander rivets (3).

Fig 1: Removing Luggage Compartment Wheel Arch Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip belt outlet trim at front.

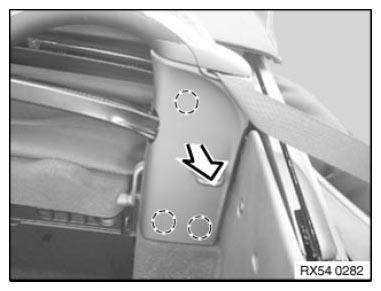

Fig 2: Opening Belt Outlet Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips.

Pre-install clips.

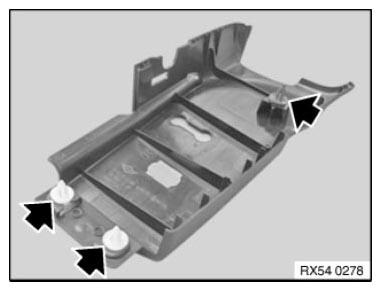

Fig 3: Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Remove belt outlet trim on back.

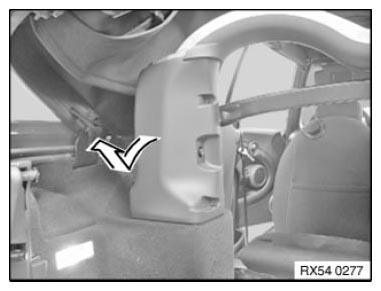

Fig 4: Removing Belt Outlet Trim

Courtesy of BMW OF NORTH AMERICA, INC.
