51 46 003 Removing and installing/replacing trim for rear parcel shelf

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release screws (1) on left and right.

Remove trim (2) for rear parcel shelf.

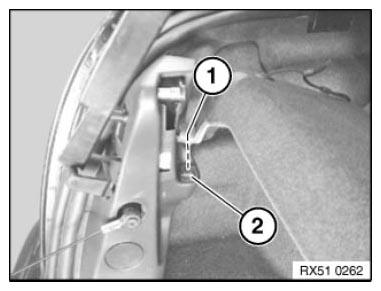

Fig 1: Identifying Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Pin on rear window shelf (1) must press on microswitch (2) during closing (Convertible top operation not functioning).

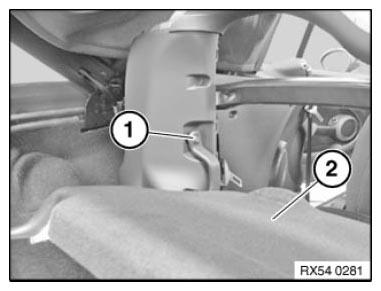

Fig 2: Identifying Rear Window Shelf And Microswitch

Courtesy of BMW OF NORTH AMERICA, INC.
