51 46 081 Removing and installing/replacing lower rollover protection panel

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

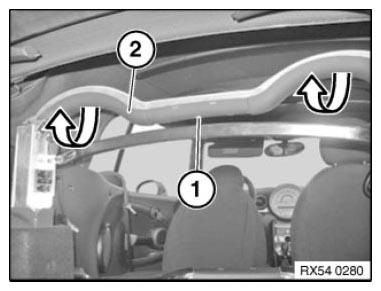

Release outer screws (1) on rollover protection strut (2).

Installation:

Replace self-locking screws.

Tightening torque, 54 62 2AZ .

Fig 1: Identifying Screws On Rollover Protection Strut

Courtesy of BMW OF NORTH AMERICA, INC.

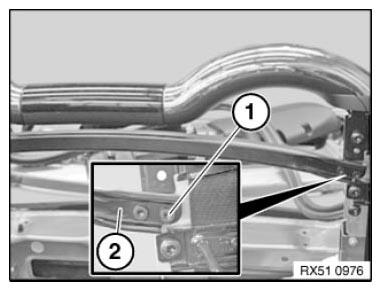

Unclip lower trim (1) with plastic wedge. In so doing, position plastic wedge centrally.

Installation:

Retaining lugs must not be damaged nor must trim (1) be scratched.

If necessary, replace trim (1).

Trim (1) is encoded against incorrect installation.

Fig 2: Removing Lower Trim

Courtesy of BMW OF NORTH AMERICA, INC.

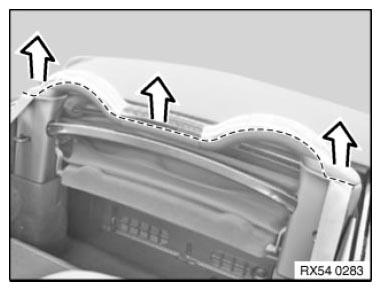

Carefully unclip lower panel from upper panel along dashed line at front and rear (do not observe arrows in graphic).

Installation:

Retaining lugs on lower or upper trim must not be damaged.

If necessary, replace faulty covers.

Fig 3: Removing Lower Panel From Upper One

Courtesy of BMW OF NORTH AMERICA, INC.

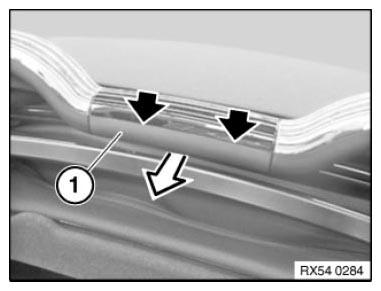

Lever out clip (1).

Installation:

Replace faulty clip (1).

Remove lower panel (2).

Fig 4: Removing Lower Panel

Courtesy of BMW OF NORTH AMERICA, INC.
