54 34 337 Removing and installing/replacing front left or right seal

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Release screws (1).

Remove front seal (2).

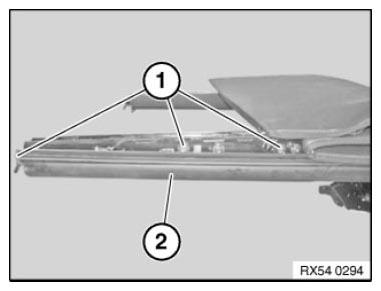

Fig 1: Identifying Front Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Perform function check:

Align front seal to A-pillar seal and roof frame seal.

Side window must run into seal correctly and rest in seal over entire width.

Installation:

Seal (1) must rest cleanly in pocket of cowl panel seal (2).

Pocket (2) must not be crushed.

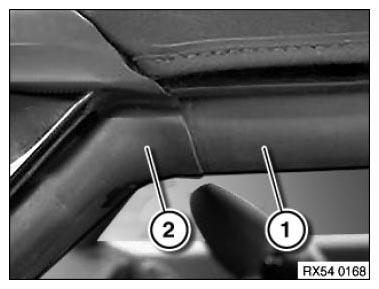

Fig 2: Identifying Seal And Pocket Of Cowl Panel Seal

Courtesy of BMW OF NORTH AMERICA, INC.
