54 34 357 Removing and installing/replacing left or right guide rail trim panel

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

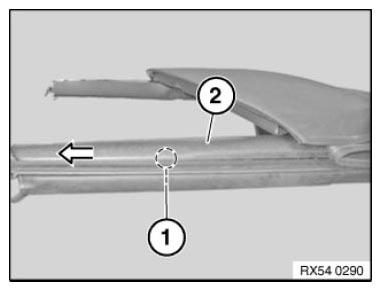

Release screw (1).

Snap out trim panel (2) in direction of arrow and remove.

Fig 1: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

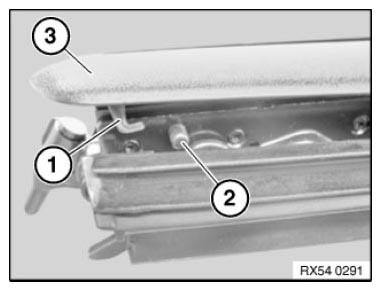

Hook (1) must snap into place correctly under guide lug (2).

Make sure trim panel (3) is correctly seated.

Fig 2: Identifying Trim Panel, Hook And Guide Lug

Courtesy of BMW OF NORTH AMERICA, INC.
