34 41 071 Replacing handle for handbrake lever

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

Release retaining lugs (1) on cap (2) and remove cap.

Release retaining tab (3) on handbrake lever handle and remove handbrake lever handle in direction of arrow.

Installation:

The handbrake lever handle is seated in a taper groove (4) and can only be installed in one position.

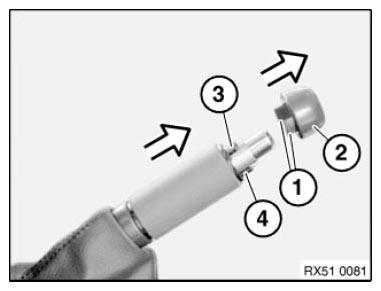

Fig 1: Removing Handbrake Lever Handle

Courtesy of BMW OF NORTH AMERICA, INC.
