34 41... Removing and installing or replacing boot for handbrake lever

WARNING: This page is about a different variant/trim than selected.

Notes

Unclip boot with special tool 00 9 317 .

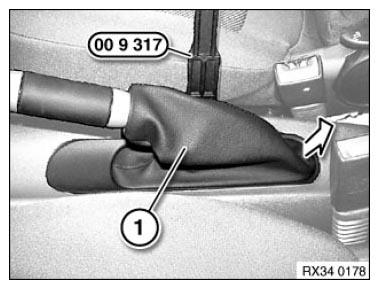

Fig 1: Removing Boot Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Pull boot (1) over handbrake lever.

Cut cable ties (2) and remove boot.

Installation:

Eye of cable tie must face downward

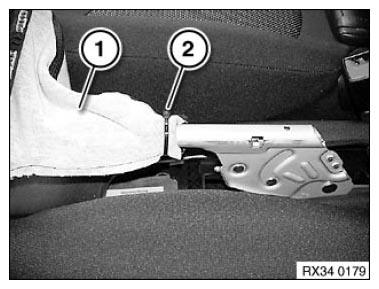

Fig 2: Identifying Boot With Cable Ties

Courtesy of BMW OF NORTH AMERICA, INC.
