13 31 028 Checking fuel feed pressure (N12)
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks
- Remove SUCTION FILTER HOUSING .
- Connect DIS Tester.
Recycling
Catch and dispose of escaping fuel in a suitable container.
Observe country-specific waste-disposal regulations.

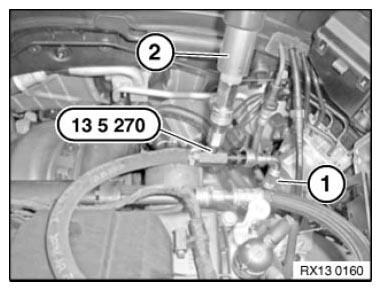

Unlock quick-connect coupling from feed line (1) and disconnect.
Install special tool 13 5 270.
Connect pressure sensor (2) of DIS Tester.
Turn on ignition or activate fuel pump by means of BMW diagnosis system.
Read off FUEL FEED PRESSURE .
